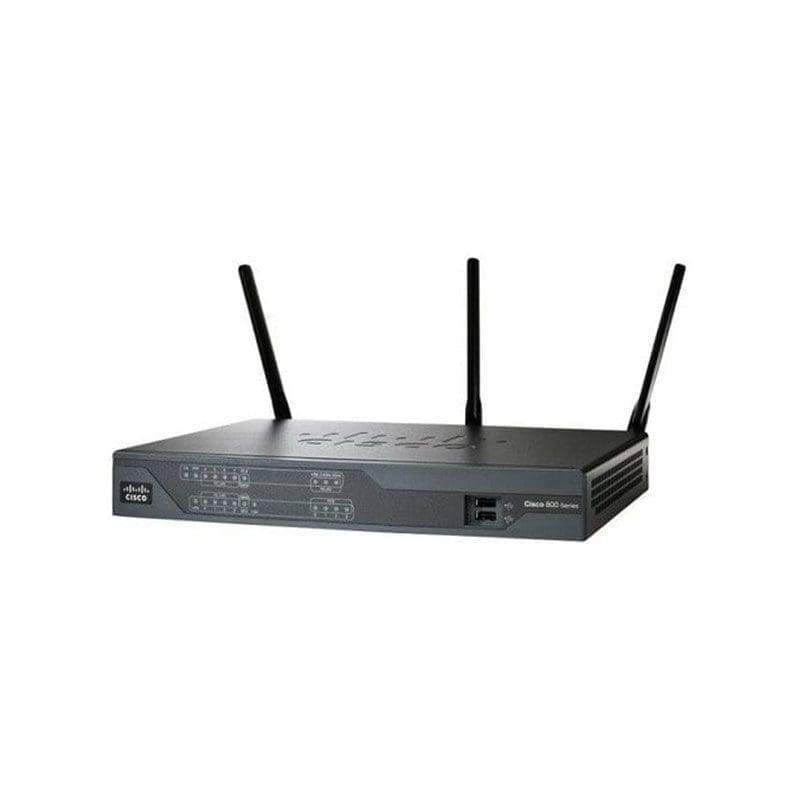

Refurbished CISCO892W-AGN-E-K9 Technical Specifications
Cisco 892W Gigabit Ethernet security router with 802.11n,ETSI compliant
| Product number |
|
| Description |
- Cisco 892W Gigabit Ethernet security router with802.11n,ETSI compliant
|
Default and maximum DRAM
| 512 and 768 MB, respectively, on Cisco 891 and 892 Series data models; upgrade option available |
| Default and maximum flash memory |
- ● 256 on all Cisco 890 models; not upgradable
|
WAN
- 8-port 10-/100-Mbps managed switch
- Separate console and auxiliary ports
- RJ-45
- Two USB 2.0 ports available on Cisco 891, 892, and 892F models
- One USB 2.0 port available on Cisco 892FSP, 896VA, 897VA, 898EA, and 891F
● USB devices supported
- ◦ USB eTokens on Cisco 891, 892, and 892F only
- ◦ USB flash memory
Inline PoE
- Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access points; 802.3af compliant and Cisco oE compliant
- No PoE support on Cisco 892FSP
Wireless Specifications
Data rates supported
| ● 802.11a |
6, 9, 12, 18, 24, 36, 48, and 54 Mbps |
| ● 802.11b |
1, 2, 5.5, 6, 9, and 11 Mbps |
| ● 802.11g |
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps |
| ● 802.11n |
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, and m0-m15 |
Maximum transmit power (2-channel aggregate)
| ● 802.11a |
15dBm |
| ● 802.11b |
20 dBm |
| ● 802.11g |
17 dBm |
| ● 802.11n |
16 dBm |
Physical dimensions and weight
- H x W x D = 1.9 x 12.8 x 10.4 in. (4.8 x 32.5 x 26.4 cm) (includes rubber feet)
- H x W x D = 1.75 x 12.8 x 10.4 in. (4.5 x 32.5 x 26.4 cm) (without rubber feet; excludes antennas)
| ● Weight |
5.5 lb (2.5 kg) maximum |
External power supply
Product power specifications
| AC input voltage |
Universal 100 to 240 VAC |
| Frequency |
50 to 60 Hz |
| Maximum output power |
60W |
| Output voltages |
12 VDC |
| Separate 80W POE power supply for Cisco 891 and 892 ISRs |
Single 125W power supply required for Cisco 896, 897, 898 and 891F for router and PoE External output voltage:
Approvals and compliance
| Emission |
| ● 47 CFR Part 15 |
2006 |
| ◦ Cispr22 |
2005 |
| ◦ En300386 |
V1.3.3: 2005 |
| ◦ En55022 |
2006 ◦ EN61000-3-2: 2000 [Inc amd 1 & 2] |
| ◦ En61000-3-3 |
1995 [+ amd 1: 2001] |
| ◦ ICES-003 Issue 4 |
2004 |
| ◦ Kn 22 |
2005 |
| ◦ Vcci |
V-3/2006.04 |
| Immunity |
| ● Cispr24 |
1997 [+ amd 1 & 2] |
| ◦ En300386 |
V1.3.3: 2005 |
| ◦ En50082-1 |
1992 |
| ◦ En50082-1 |
1997 |
| ◦ En55024 |
1998 [+ amd 1 & 2] |
| ◦ En61000-6-1 |
2001 |
Environmental operating range
| ● Nonoperating temperature |
-4 to 149°F (-0 to 65°C) |
| ● Nonoperating humidity |
5 to 95% relative humidity (noncondensing) |
| ● Nonoperating altitude |
0 to 15,000 ft (0 to 4570m) |
| ● Operating temperature |
32 to 104°F (0 to 40°C) |
| ● Operating humidity |
10 to 85% relative humidity (noncondensing) |
| ● Operating altitude |
0 to 10,000 ft (0 to 3000m) |
