CISCO887-K9 Technical Specifications

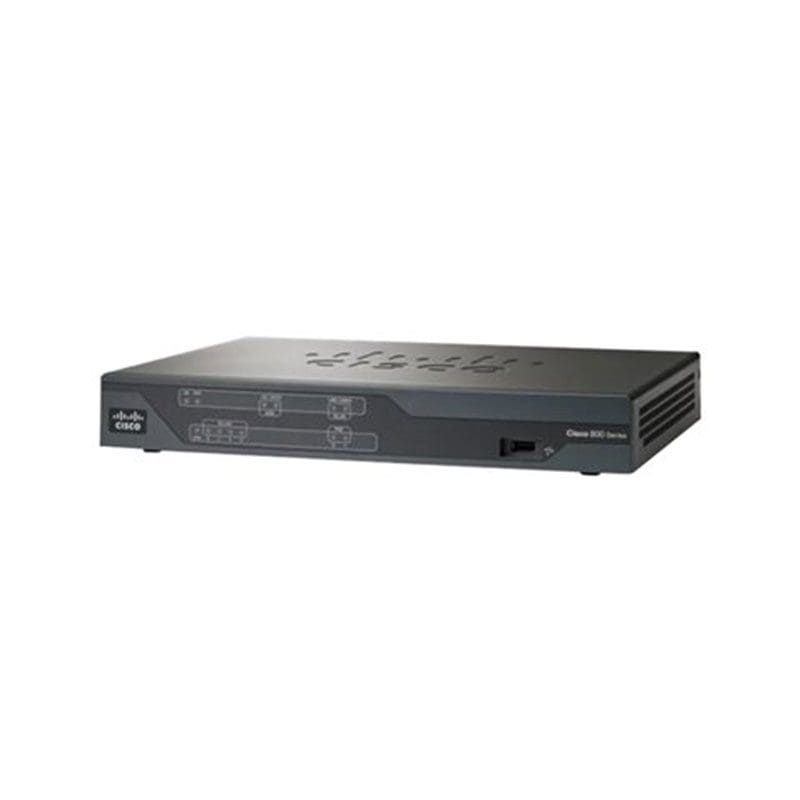

Cisco 887 ADSL2/2+ Annex A Router
| Product Number | CISCO887-K9 |
|---|---|
| Description | Cisco 887 ADSL2/2+ Annex A Router |
| Default and maximum flash memory | 128 MB |
| Console or auxiliary port | |
USB devices supported
| USB | eTokens |
|---|---|
| USB | flash memory |
- External power supply
- Universal 100 to 240 VAC input; 60W, 12 VDC output
Power
Product power specifications
| AC input voltage | 100 to 240 VAC |
|---|---|
| Frequency | 50 to 60 Hz |
| Maximum output power | 60W |
| Output voltages | 12 VDC |
Optional internal PoE with external adapter
| Maximum output power | 80W |
|---|---|
| External output voltage | 48 VDC |
| Approvals and compliance | |
Emissions
| 47 CFR Part 15 | 2006 |
|---|---|
| Cispr22 | 2005 |
| En300386 | V1.3.3: 2005 |
| En55022 | 2006 |
| En61000-3-2 | 2000 [Inc amd 1 and 2] |
| En61000-3-3 | 1995 [+ amd 1: 2001] |
| ICES-003 Issue 4 | 2004 |
| Kn 22 | 2005 |
| Vcci | V-3/2006.04 |
Immunity
| Cispr24 | 1997 [+ amd 1 and 2] |
|---|---|
| En300386 | V1.3.3: 2005 |
| En50082-1 | 1992 |
| En50082-1 | 1997 |
