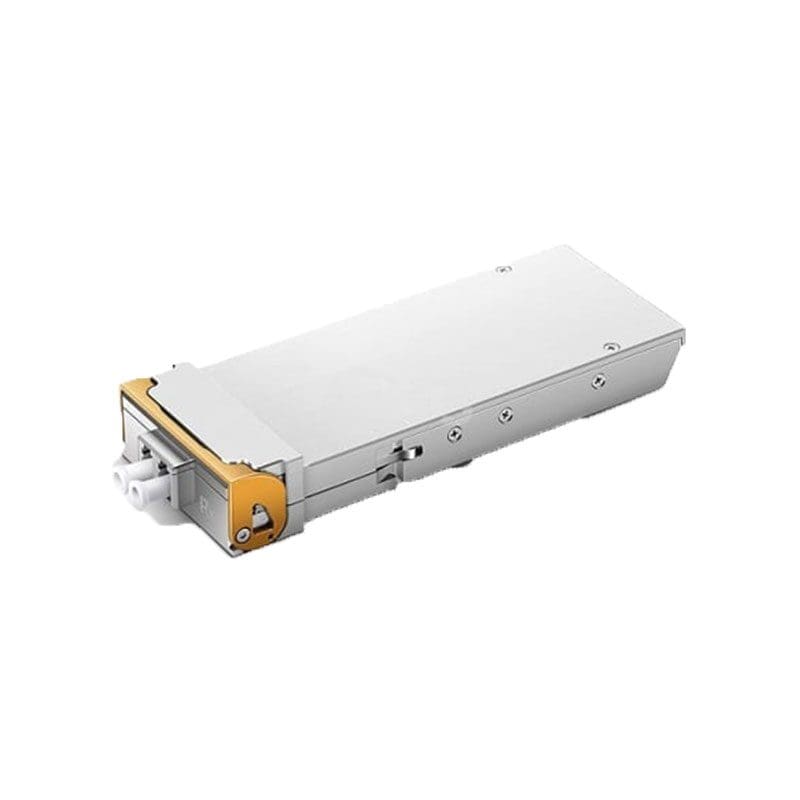

CFP2-DCO-100G-HG Juniper CFP2 Dco with Hgfec Support 100G Only
CFP2-DCO-100G-HG Overview
Juniper Networks CFP2 Dco with Hgfec Support 100G Only
$66,499.00
Shipping calculated at checkout.
CFP2-DCO-100G-HG Technical Specifications
Juniper Networks CFP2 Dco with Hgfec Support 100G Only
| Model Type | 100 Gigabit Ethernet |
|---|---|
| Transceiver Type | CFP2 |
| Monitoring Available | Yes |
| Digital Optical Monitoring | Yes |
| MSA compliance (SFF, for e.g. SFF-8665) | CFP MSA Management Interface Specification |
| Cable type | SMF |
| Distance | Up to 2000 km depending on fiber and line system properties |
| Channel plan wavelength range | 1568.362 nm through 1528.773 nm |
| Channel plan frequency range | 191.15 THz through 196.10 THz |
| Channel spacing | 50 GHz or 37.5 GHz |
| Channel tunability | 6.25 GHz grid |
| Optical transmitter output power (on) | -15 to 1 dBm, 0.1 dB steps, +/-1 dB accuracy |
| Optical transmitter output power (off) | <= -40 dBm |
| Optical Transmitter 3-dB spectral width (maximum) | <= 500 KHz (laser linewidth) |
| Optical transmitter wavelength accuracy | +/- 1.8 GHz or less |
| Optical transmitter channel tuning time | 60 seconds or less |
