CCR2116-12G-4S+ MikroTik 13 х 10/100/1000 RouterOS L6

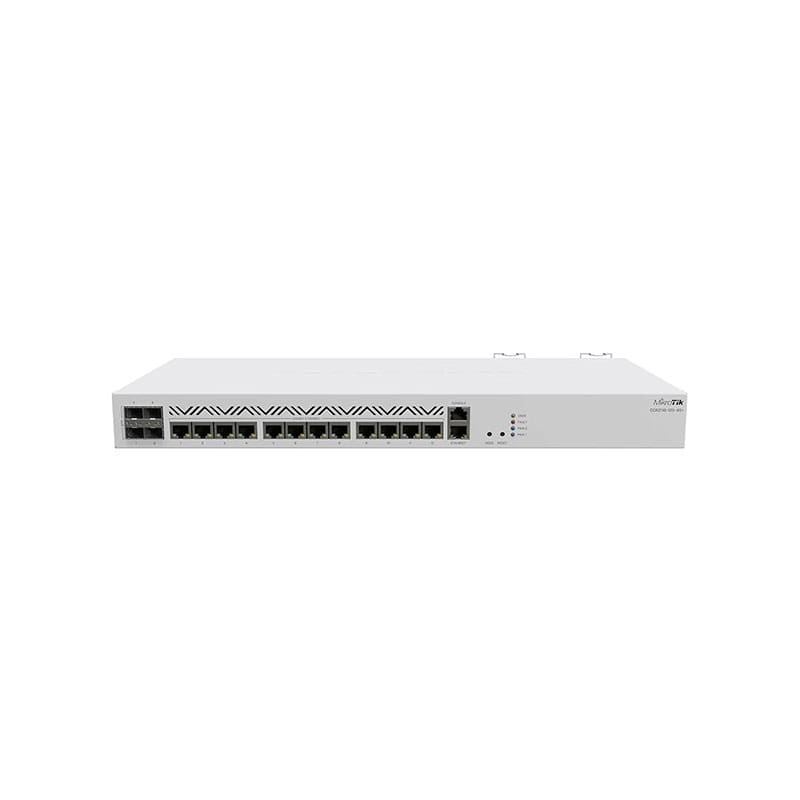

CCR2116-12G-4S+ Overview
MikroTik 13 х 10/100/1000 Ethernet ports, 4 х SFP+(10G) ports, AL73400 CPU ARM 64bit 2 GHz, RouterOS L6. We wanted to see the full potential of the good, old, reliable 10G networking combined with a modern CPU. This allows you to forget about CPU limitations in your setup. Like its younger brother – the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU.
$994.00
Shipping calculated at checkout.
CCR2116-12G-4S+ Technical Specification
MikroTik 13 х 10/100/1000 Ethernet ports CPU ARM 64bit 2 GHz, RouterOS L6
| Brand | MikroTik |
|---|---|
| Architecture | ARM 64bit |
| CPU | AL73400 |
| CPU core count | 16 |
| CPU nominal frequency | 2000 MHz |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 16 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Mtbf | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
Powering
| Number of AC inputs | 2 |
|---|---|
| AC input range | 100-240 |
| Max power consumption | 72 W |
| Max power consumption without attachments | 60 W |
| FAN count | 4 |
Ethernet
| 10/100/1000 Ethernet ports | 13 |
|---|
Fiber
| SFP+ ports | 4 |
|---|
Peripherals
| Serial console port | RJ45 |
|---|---|
| Number of M.2 slots | 1 |
Other
| CPU temperature monitor | Yes |
|---|---|
| PCB temperature monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Certification | CE, EAC, ROHS |
|---|
