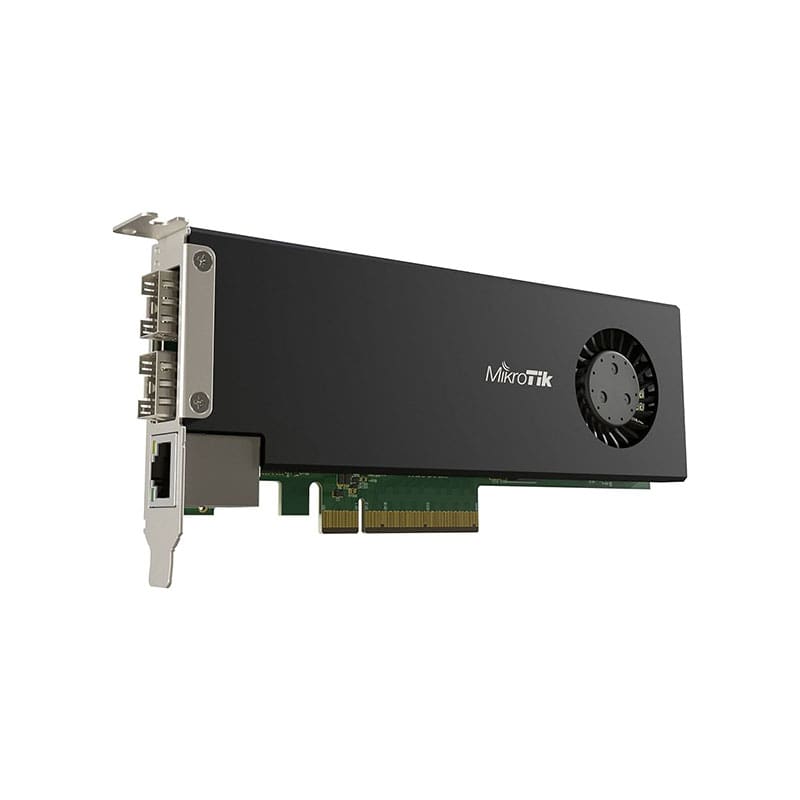

CCR2004-1G-2XS-PCIe MikroTik Gigabit PCIe 25W RouterOS
CCR2004-1G-2XS-PCIe Overview
MikroTik Gigabit PCIe Ethernet adapter 2×25 25W 4GB RAM RouterOS. Save space in your server room by adding a real CCR2004.. within the server itself! This unique product combines a simple 2x 25 Gigabit PCIe Ethernet adapter with the impressive capabilities of a fully-fledged router.
$234.00
Shipping calculated at checkout.
CCR2004-1G-2XS-PCIe Technical Specification
MikroTik Gigabit PCIe Ethernet adapter 2×25 25W 4GB RAM RouterOS
| Manufacturer | MikroTik |
|---|---|
| Architecture | ARM 64bit |
| CPU | AL52400 |
| CPU core count | 4 |
| CPU nominal frequency | 1500 MHz |
| Dimensions | 170 x 69 x 18 mm |
| RouterOS license | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 4 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Mtbf | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
Powering
| Max power consumption | 29 W |
|---|---|
| Max power consumption without attachments | 22 W |
| Cooling type | 1 fan |
Ethernet
| 10/100/1000 Ethernet ports | 1 |
|---|
Fiber
| Number of 25G SFP28 ports | 2 |
|---|
Other
| CPU temperature monitor | Yes |
|---|---|
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Certification | CE, EAC, ROHS |
|---|---|
| IP | 20 |
