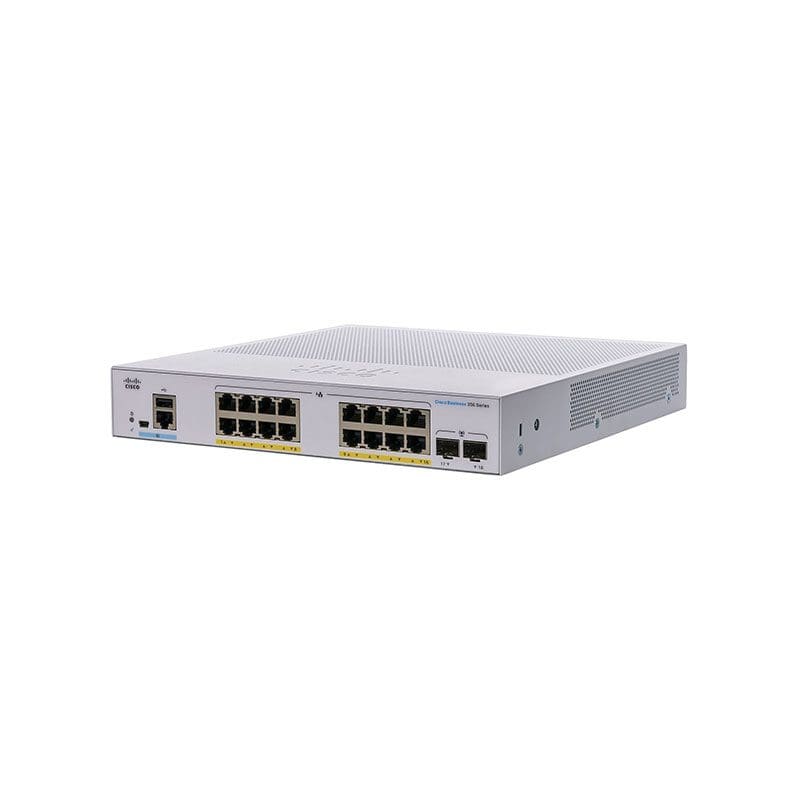

CBS350-16T-E-2G Technical Specifications
Cisco Ethernet Switch 18 Ports Manageable 2 Layer Supported
| Product Type |
Ethernet Switch |
| Manageable |
Yes |
| Ethernet Technology |
Gigabit Ethernet |
| Number Of Total Expansion Slots |
2 |
| Product Family |
350 |
| Media Type Supported |
Optical Fiber/twisted Pair |
| Total Number Of Network Ports |
18 |
| Expansion Slot Type |
Sfp (mini-gbic) |
| Power Consumption |
19.32 W |
| Power Source |
Ac Adapter |
| Feature |
|
| Capacity |
in Millions of Packets per Second (mpps) (64-byte packets) |
| 26.78 |
| Switching Capacity |
in Gigabits per Second (Gbps) |
- 36.0
- Total System Ports
- 18 x Gigabit Ethernet
| RJ-45 Ports |
|
| Combo Ports |
(RJ45 + Small form-factor pluggable [SFP]) |
- 2 x SFP
- Packet Buffer
- 1.5 MB
- Unit dimensions (W x D x H)
- 268 x 210 x 44 mm (10.56 x 8.26 x 1.73 in)
- IPv4 routing
- Wirespeed routing of IPv4 packets
- Up to 990 static routes and up to 128 IP interfaces
- IPv6 routing
Wirespeed routing of IPv6 packets
| Layer |
3 Interface |
| Configuration |
of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface |
- Classless Interdomain Routing (CIDR)
- Support for classless interdomain routing
- RIP v2
- Support for Routing Information Protocol version 2 for dynamic routing
- Policy-Based Routing (PBR)
Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 Access Control List (ACL)
DHCP Server
| Switch |
functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes |
- Support for DHCP options
- DHCP relay at Layer 3
- Relay of DHCP traffic across IP domains
- User Datagram Protocol (UDP) relay
Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets
