CBS220-24T-4X-NA Technical Specifications

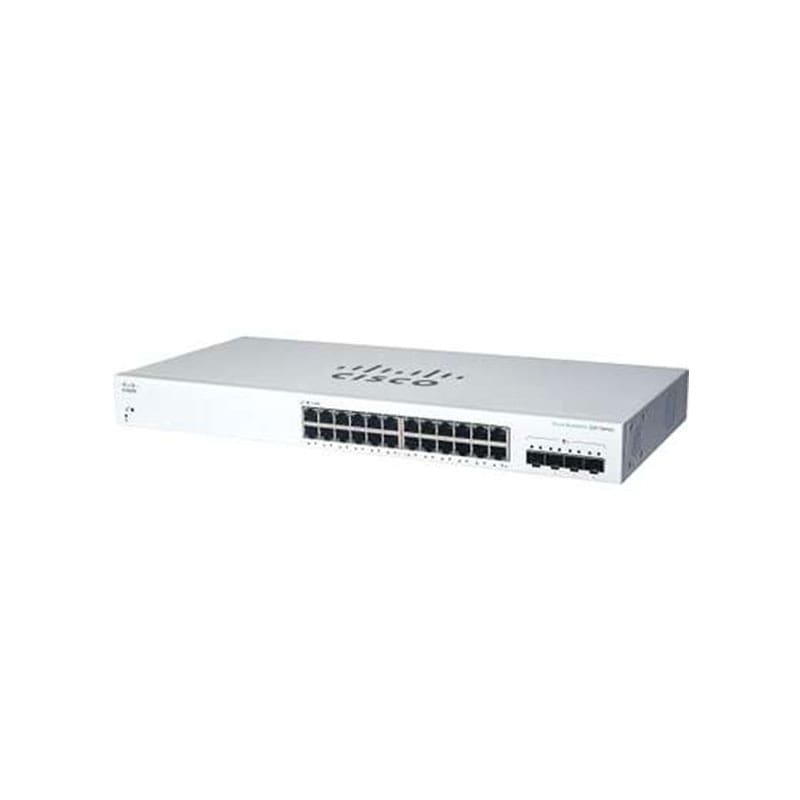

Cisco Systems CBS220-24T-4X-NA Smart 24-Port GE, 4x10G SFP+
| Manufacturer Part Number | CBS220-24T-4X-NA |
|---|---|
| Product Type | Ethernet Switch |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet, 10 Gigabit Ethernet |
| Number of Total Expansion Slots | 4 |
| Product Family | Business 220 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Total Number of Network Ports | 24 |
| Expansion Slot Type | SFP+ |
| Form Factor | Rack-mountable |
| Power Consumption | 23.60 W |
| Power Source | Power Supply |
| Layer Supported | 2 |
| Environmentally Friendly | Yes |
| Number of SFP+ Slots | 4 |
| Modular” | Yes |
| Uplink Port | Yes |
| Port / Expansion Slot Details | 24 x Gigabit Ethernet Network, 4 x 10 Gigabit Ethernet Expansion Slot |
| Height | 1.7″ |
| Width | 17.3″ |
| Depth | 8″ |
| Product Series | 220 |
| Product Model | CBS220-24T-4X |
| Network Technology | 1000Base-T, 10GBase-X |
| Product Line | Business |
| Limited Warranty | 3 Year |
| Frequency | 50 Hz, 60 Hz |
