CBS220-24P-4G-NA Technical Specifications

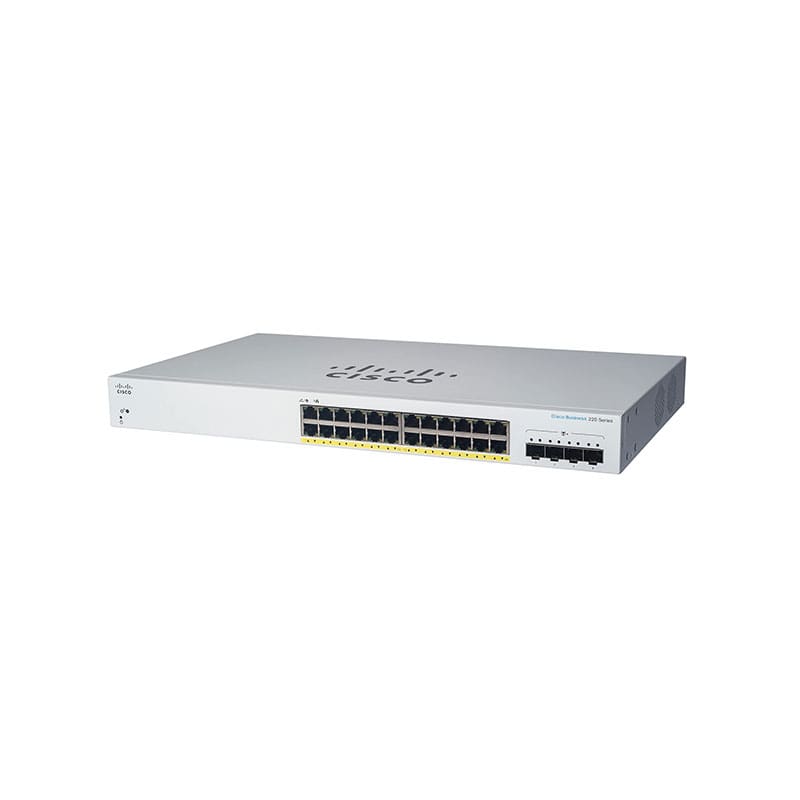

Cisco Business 220 Series CBS220-24P-4G Switch 28 ports Smart Rack-Mountable
| Brand | Cisco |
|---|---|
| Product Line | Cisco Business 220 Series |
| Model | CBS220-24P-4G |
| Manufacturer | Cisco Systems |
Memory
| Flash Memory Installed | 64 megabyte |
|---|---|
| RAM Installed | 256 megabyte |
Network & Communication
| Form Factor (Hubs & Switches) | Rack-mountable |
|---|---|
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 8192 entries |
| Manageable | Yes |
| PoE Budget | 195 watt |
| Ports | 28 |
| Power Over Ethernet (PoE) | PoE+ |
| Product Type | Switch |
| Smart | Yes |
| Status Indicators | Link/activity/speed, System |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| Port Quantity | 24 |
| Port Type | 10/100/1000 (PoE+) |
| Ports Type (2nd) | Gigabit SFP (uplink) |
Power
| Frequency | 50/60 hertz |
|---|---|
| Power Consumption Operational | 244.3 watt |
| Required Voltage | AC 100-240 volt |
Technical Information
| Encryption | SSL |
|---|---|
| Humidity Range Storage | 10 – 90% (non-condensing) |
| Max Operating Temperature | 122 degree Fahrenheit |
