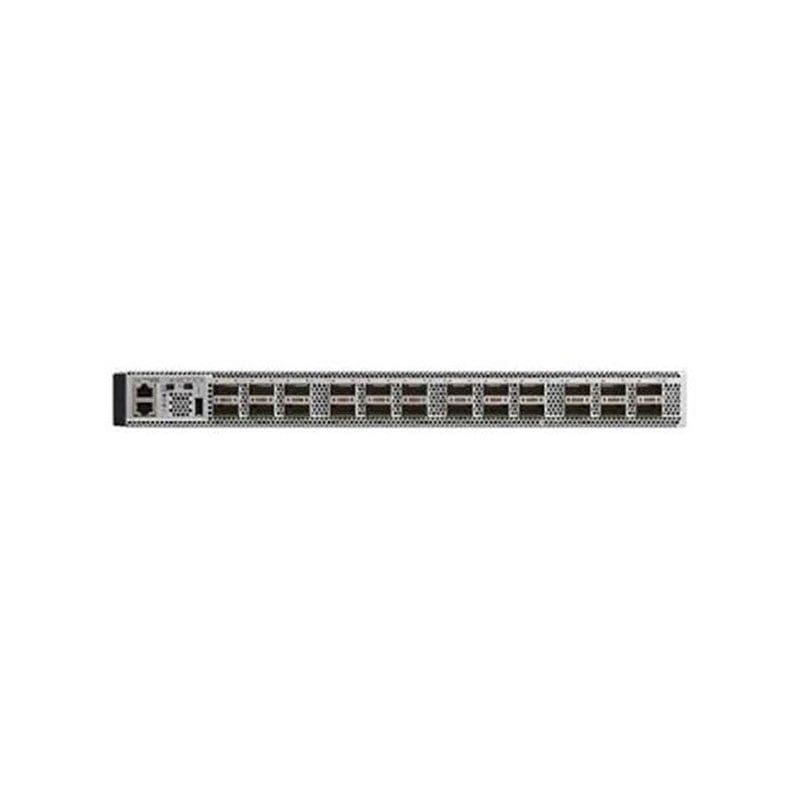

C9500-24Q-EDU Cisco Catalyst 9500 Switch 24 Port Managed

Brand:

C9500-24Q-EDU Overview

The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU

$24,199.00

Shipping calculated at checkout.
or
SKU: C9500-24Q-EDU Categories: Brand:

C9500-24Q-EDU Technical Specifications

Cisco Catalyst 9500 Switch 24 Port Managed Rack Mountable

Cabinet

Chassis Built-in Devices RFID tag

Capacity

Type FNF entries
Value 512000
Type Host IPv4 routes
Value 32000
Type Host IPv6 routes
Value 16000
Type Indirect IPv4 routes
Type Indirect IPv6 routes
Type Multicast scale
Value 48000
Type QoS ACL scale
Value 18000
Type Routing table entries
Value 64000
Type Security ACL scale
Type Switched virtual interfaces (SVIs)
Type VLAN IDs
Value 4000

Dimensions & Weight

Depth 21.5 in
Height 1.7 in
Weight 25.75 lbs
Width 17.5 in

Environmental Parameters

Humidity Range Operating 5 – 90% (non-condensing)
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 104 °F
Max Storage Temperature 149 °F
Min Operating Temperature 32 °F
Min Storage Temperature -4 °F
