C9500-24Q-A Technical Specifications

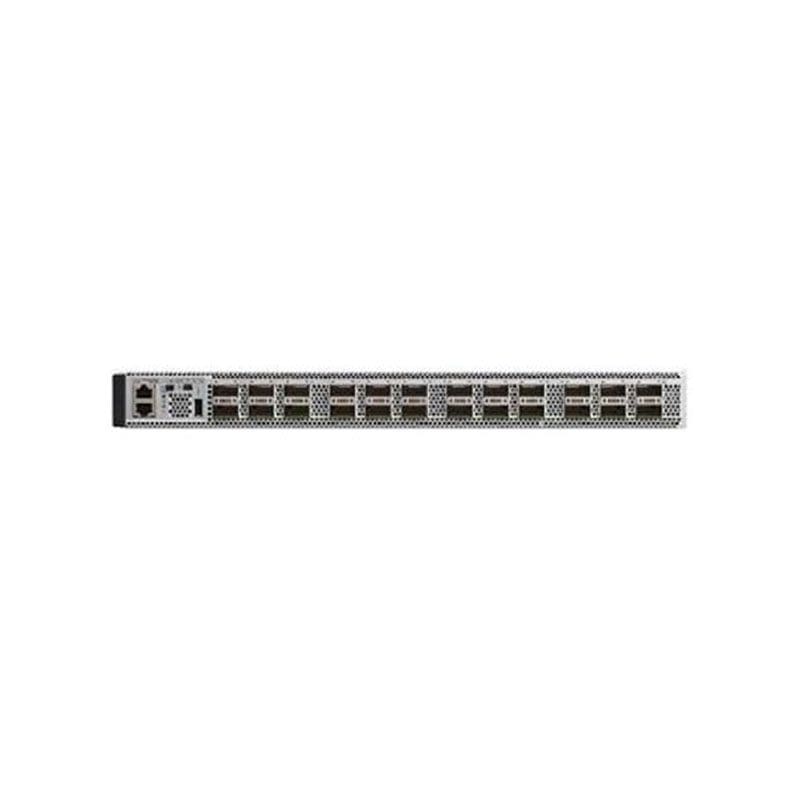

Cisco Catalyst 9500 24-port 40G switch, Network Advantage
General Information
| Manufacturer | Cisco Systems, Inc |
|---|---|
| Brand Name | Cisco |
| Product Line | Cisco Catalyst |
| Product Series | C9500 |
| Device Type | Switch – 24 ports – L3 – managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 40 Gigabit Ethernet |
| Ports | 24 x 40 Gigabit SFP |
| Power Over Ethernet (PoE) | UPOE |
| Performance Switching capacity (full duplex) | 960 Gbps ¦ Forwarding rate: 1440 Mpps |
| Capacity Routing table entries | 64000 ¦ Indirect IPv4 routes: 64000 ¦ Host IPv4 routes: 32000 ¦ Indirect IPv6 routes: 32000 ¦ Host IPv6 routes: 16000 ¦ Multicast scale: 48000 ¦ QoS ACL scale: 18000 ¦ Security ACL scale: 18000 ¦ FNF entries: 512000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9198 bytes |
