C9300L-48UXG-2Q-E Technical Specifications

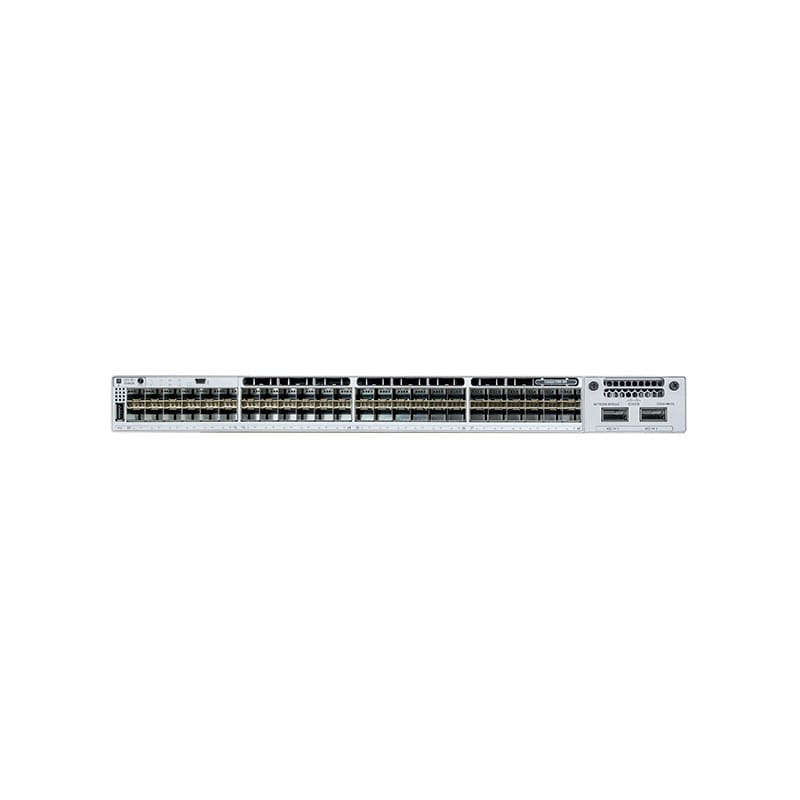

Cisco Catalyst 9300L Network Essentials Switch 48 ports Managed Rack-Mountable
| Brand | Cisco |
|---|---|
| Product Lin | Cisco Catalyst |
| Model | 9300L |
| Edition | Network Essentials |
| Manufacturer | CISCO DS HARDWARE DIRECT |
Memory
| Flash Memory Installed | 16 GB |
|---|---|
| RAM Installed | 8 GB |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Manageable | Yes |
| PoE Budget | 675 watt |
| Ports | 48 |
| Power Over Ethernet (PoE) | UPOE |
| Product Type | Switch |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
Power
| Frequency | 50 – 60 hertz |
|---|---|
| Power Provided | 1100 watt |
| Power Supplies Installed | 1 |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Optional |
Technical Information
| Encryption | 128-bit AES, 256-bit AES |
|---|---|
| Humidity Range Storage | 5 – 90% (non-condensing) |
| Max Operating Temperature | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Min Operating Temperature | 23 degree Fahrenheit |
