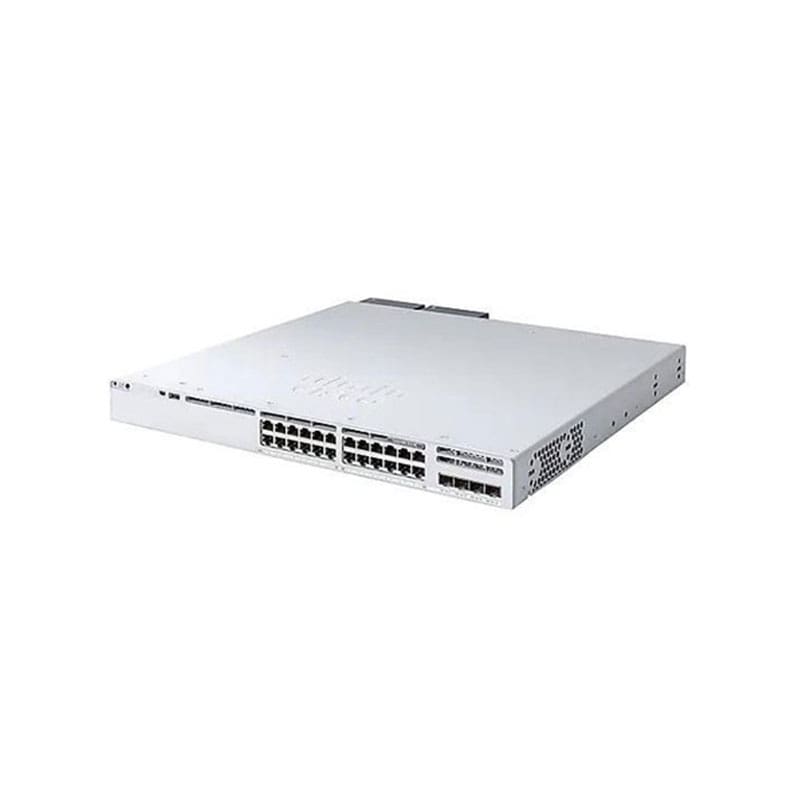

C9300L-24UXG4X-1A Technical Specifications
Cisco Systems Fed Only C9300L 24P PoE+ 8XMGIG Netware AD
| Manufacturer Part Number | C9300L-24UXG4X-1A |
|---|---|
| Product Type | Ethernet Switch |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet, 10 Gigabit Ethernet |
| Number of Total Expansion Slots | 4 |
| Product Family | Catalyst 9300 |
| Stack Port | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 24 |
| Redundant Power Supply Supported | Yes |
| Expansion Slot Type | Uplink Module |
| Form Factor | Rack-mountable |
| Power Consumption | 1100 W |
| Power Source | Power Supply, AC |
| Layer Supported | 3 |
| Environmentally Friendly | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Height | 1.7″ |
| Width | 17.5″ |
| Depth | 16.1″ |
| Product Series | 9300 |
| Product Model | C9300L-24UXG-4X |
| Network Technology | 1000Base-T, 10GBase-X |
| Product Line | Catalyst |
| Input Voltage | 120 V AC, 230 V AC |
| Frequency | 50 Hz, 60 Hz |
