C9200L-48P-4G-E Technical Specifications

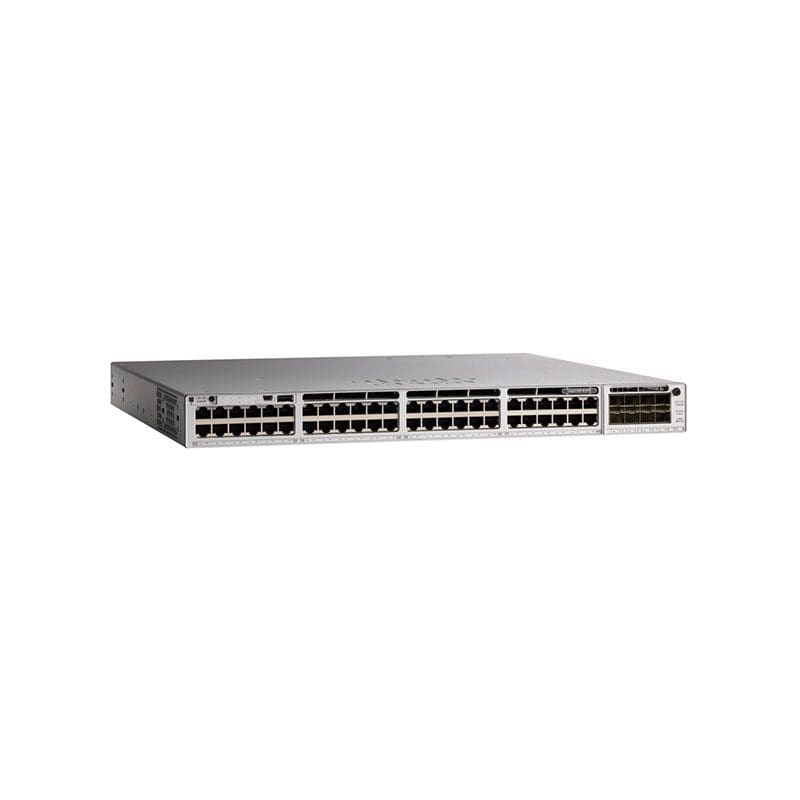

Cisco Switch Catalyst 9200
| Manufacturer | Cisco |
|---|---|
| Brand | Cisco |
| Product Line | Cisco Catalyst |
| Product Series | C9200L |
- Downlinks total 10/100/1000 or PoE+ copper ports
- 48 ports full POE+
| Uplink configuration | 4x 1G fixed uplinks |
|---|---|
| Default primary AC power supply | PWR-C5-1KWAC |
| Fans | Fixed redundant |
| Software | Network Essentials |
| Chassis Dimensions | 1.73 x 17.5 x 11.3 in – 4.4 x 44.5 x 28.8 cm |
| Product Type | Ethernet Switch |
| Weight | 4.35 Kg |
| Virtual Networks | 1 |
| Stacking bandwidth | 80 Gbps |
| Total number of MAC addresses | 16,000 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Dram | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | N/A |
| Switching capacity | 104 Gbps |
