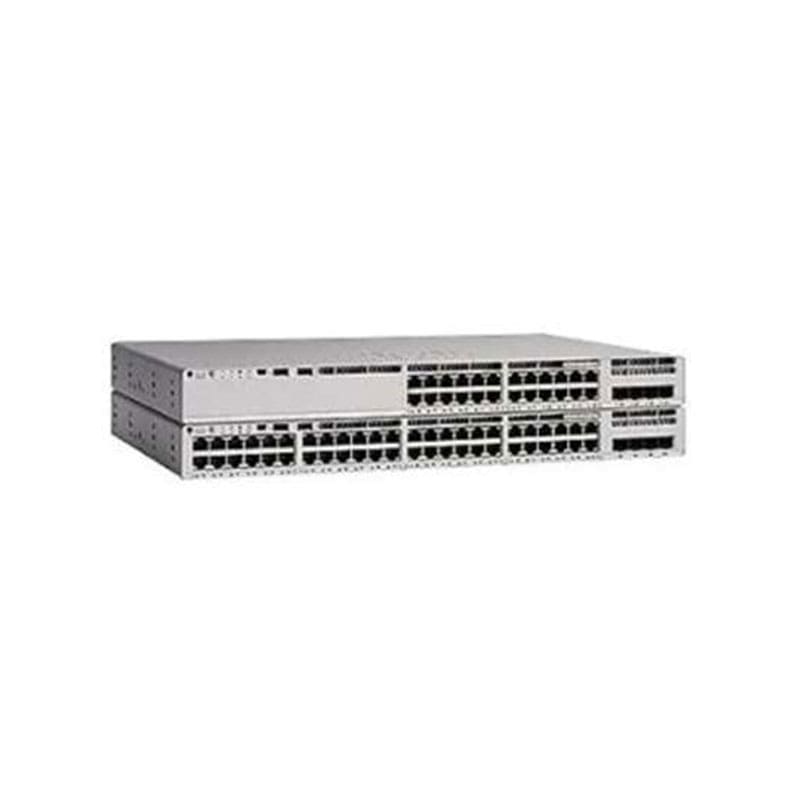

C9200-24T-1A Technical Specifications
Cisco Systems C9200 24-Port Data Network Advantage 1
| Manufacturer Part Number | C9200-24T-1A |
|---|---|
| Product Typ | e Layer 3 Switch |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Number of Total Expansion Slots | 4 |
| Product Family | Catalyst 9200 |
| Stack Port | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 24 |
| Redundant Power Supply Supported | Yes |
| Expansion Slot Type | SFP |
| Form Factor | Rack-mountable |
| Input Receptacles | IEC 60320 C16 |
| Power Consumption | 125 W |
| Power Source | Power Supply, AC |
| Layer Supported | 3 |
| Environmentally Friendly | Yes |
| Number of Power Supplies Supported | 2 |
| Number of SFP Slots | 4 |
| Modular | Yes |
| Uplink Port | Yes |
| Height | 1.7″ |
| Width | 17.5″ |
| Depth | 13.8″ |
| Product Series | 9200 |
| Product Model | C9200L-24T-4G |
| Product Line | Catalyst |
| Input Voltage | 120 V AC, 230 V AC |
| Limited Warranty | Lifetime |
