C6807-XL-S2T-BUN Technical Specifications

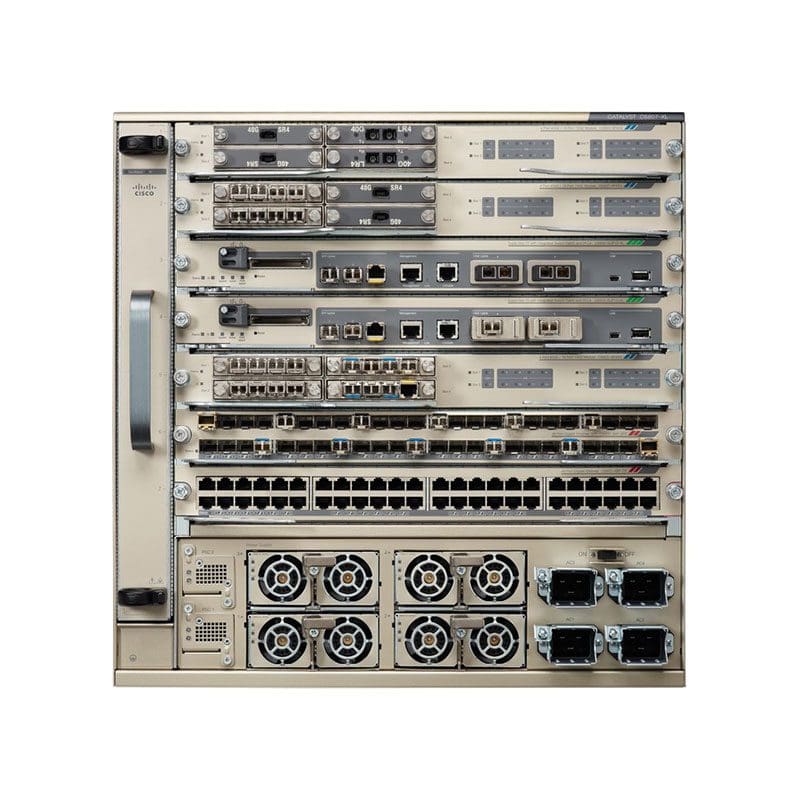

Cisco Catalyst 6807-XL Chassis Bundle Fan Tray, Sup2T and 2 Power Supplies, IP Services only
General Information
| Manufacturer | Cisco Systems, Inc |
|---|---|
| Brand Name | Cisco |
| Product Line | Cisco Catalyst |
| Product Series | C6800 |
| Device Type | Switch Chassis with Cisco Supervisor Engine 2T (VS-S2T-10G), fan tray |
| Enclosure Type | Rack-mountable 10U |
| Ports | 3 x SFP + 2 x X2 |
| Performance Per-slot switching capacity | 880 Gbps ¦ IPv4 routing: 720 Mpps ¦ IPv6 routing: 390 Mpps |
| Compliant Standards | IEEE 802.1x |
| RAM | 2 GB (installed) / 4 GB (max) |
| Flash Memory | 1 GB |
Expansion / Connectivity
| Interfaces | 1 x 1000Base-T – RJ-45 – management ¦ 1 x console – RJ-45 ¦ 1 x USB – Type A ¦ 1 x mini-USB ¦ 3 x – SFP ¦ 2 x – X2 |
|---|---|
| Expansion Slots | 7 (total) / 6 (free) x expansion slot |
| Installed Modules Qty (Max) | 1 (installed) / 7 (max) |
