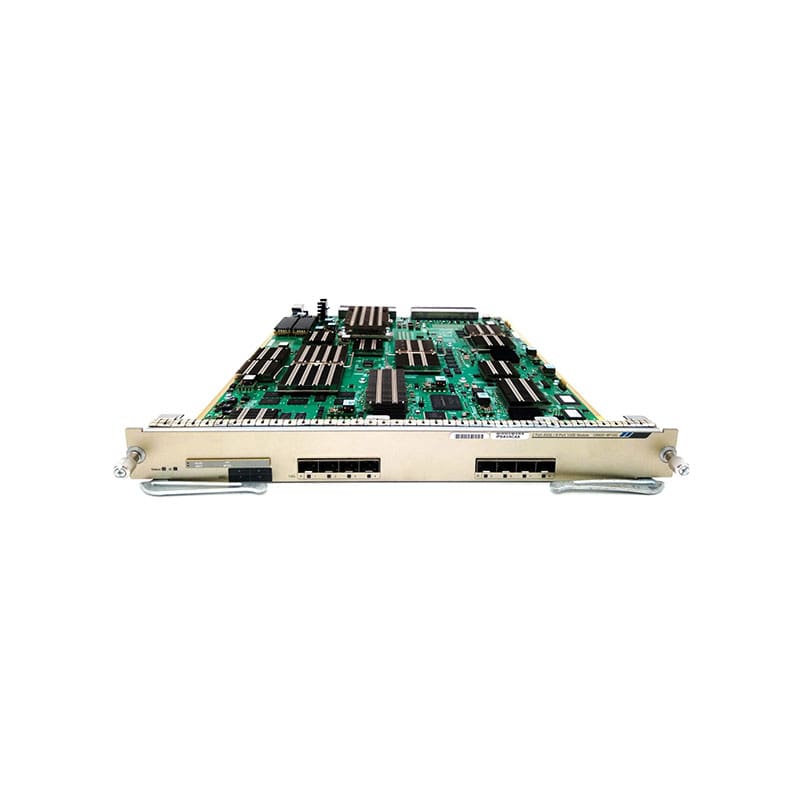

C6800-8P10G-XL Technical Specifications
Cisco Catalyst 6800 Series 10 Gigabit Ethernet Fiber Module with DFC4XL e
| Brand | Cisco |
|---|---|
| Product Line | Cisco Catalyst |
| Model | 6800 Series 10 Gigabit Ethernet Fiber Module with DFC4XL |
| Manufacturer | CISCO DS HARDWARE DIRECT |
Memory
| RAM Installed | 2 GB |
|---|
Network & Communication
| Cable Type | Ethernet 10GBase-X |
|---|---|
| Connectivity Technology | Wired |
| Data Link Protocols | 10 Gigabit Ethernet |
| Data Transfer Rate | 40 GBps |
| Form Factor | Plug-in module |
| Product Type | Expansion module |
Connectivity
| Interface Provided | 8 – SFP/SFP+ |
|---|---|
| Port Quantity | 8 |
Power
| Power Consumption Operational | 303.68 watt |
|---|
Technical Information
| Max Operating Temperature | 104 degree Fahrenheit |
|---|---|
| Min Operating Temperature | 32 degree Fahrenheit |
| Operating Humidity | 10 – 90% (non-condensing) |
Product Information
| Packaged Quantity | 1 |
|---|---|
| Performance | Forwarding performance: 60 Mpps, Switching fabric bandwidth: 80 Gbps |
Dimensions & Weight
| Height | 1.7 inch |
|---|---|
| Weight | 11.02 lbs |
| Width | 15.4 inch |
| Depth | 16.4 inch |
