C1861W-SRST-C-B/K9 Technical Specifications

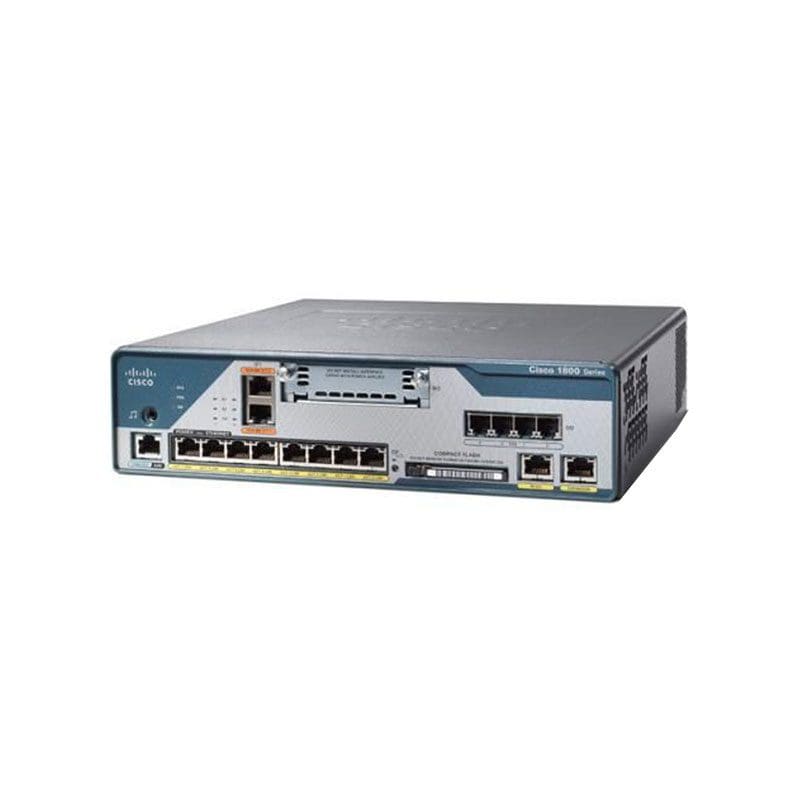

Cisco 1861 Integrated Services Router, WLAN, 8-usrSRST/CME, CUE, 4FXS, 2BRI, 8xPOE, SP Svcs, HWICslot
| Manufacturer | Cisco Systems, Inc |
|---|---|
| Manufacturer Part Number | C1861W-SRST-C-B/K9 |
| Brand Name | Cisco |
| Product Series | 1800 |
| Product Model | 1861W |
| Product Name | 1861W Integrated Service Router |
| Product Type | Wireless Router |
Wireless Specifications
| Wireless LAN Standard | IEEE 802.11b/g |
|---|---|
| ISM Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| Antenna Gain | 2.2 dBi |
| Antenna | Connector RP-TNC Connector |
| Indoor Antenna Range | 320 ft |
| Wireless Transmission Speed | 54 Mbit/s |
| Wireless Security | WEP Encryption, WPA, WPA2, Cisco LEAP, PEAP |
| IEEE 802.1x Authentication | |
Interfaces/Ports
| Fast Ethernet Port | Yes |
|---|---|
| Number of Network (RJ-45) Ports | 8 |
| PoE (RJ-45) Port | Yes |
| Management Port | Yes |
I/O Expansions
| Expansion Slots | 1 |
|---|
Network & Communication
| Ethernet Technology | Fast Ethernet |
|---|---|
| Cisco Unity Express 2.3 | |
Power Description
| Input Voltage | 110 V AC |
|---|---|
| Input Voltage | 220 V AC |
