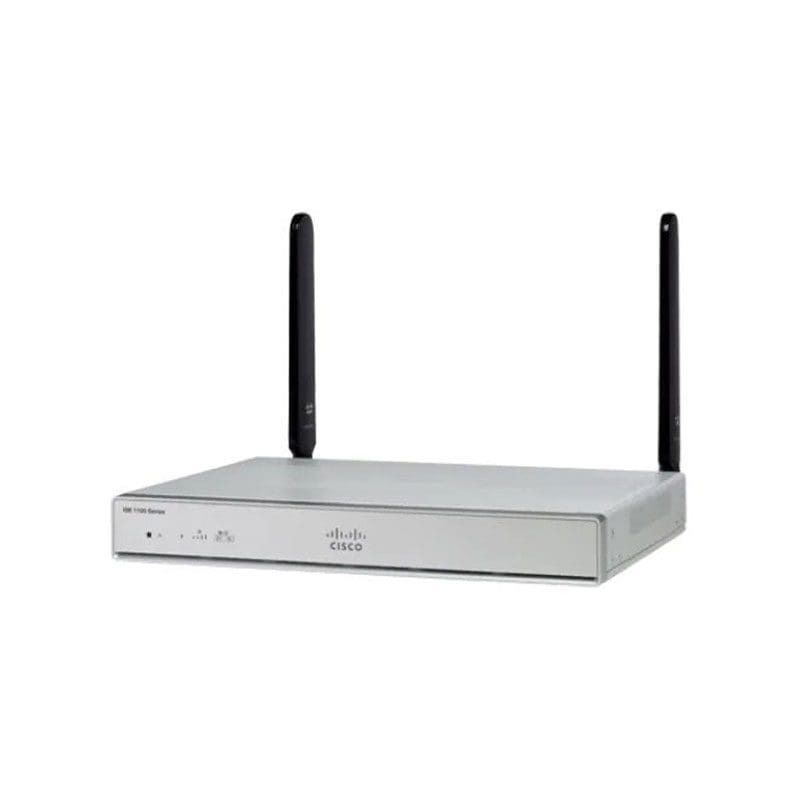

C1117-4PWE Technical Specifications
Cisco 1100 Series Integrated Services Router
| Manufacturer | Cisco |
|---|
Physical Properties
| Dimensions | (H x W x D) |
|---|
Non-LTE models
| Weight | with AC PS (w/o modules) |
|---|---|
| 5.5 Lbs. (2.5 kg) maximum | |
AC Input Power
| Input | voltage |
|---|---|
| Universal | 100 to 240 VAC |
| Frequency | 50-60 Hz |
| Input | current |
| PoE not enabled | 0.82A maximum |
| PoE enabled | 1.55A Maximum |
| Surge current | 90 A peak and less than 8 Arms per half cycle |
Ports
| Micro USB Port | One RJ-45: Separate console port |
|---|---|
| USB port | USB 3.0 Type A host port, USB devices supported:, USB flash memory |
| Wireless VLANs | 32 (encrypted and non-encrypted VLANs) |
| Wireless specifications | 2×2 .11ac Wave 2 |
Default and maximum DRAM; 4GB
| Default and maximum flash | 4GB |
|---|
