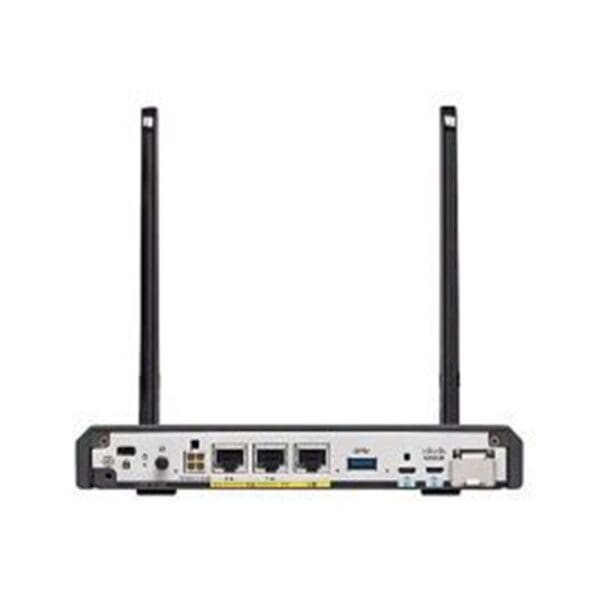

C1109-2PLTEVZ Technical Specifications
Cisco 1100 Series Integrated Services Router
Antenna
| Antenna Form Factor | External |
|---|---|
| Antenna Qty | 2 |
Cabinet
| Chassis Built-in Devices | GPS |
|---|
Capacity
| Type | Virtual interfaces (VLANs) |
|---|---|
| Value | 32 |
Dimensions & Weight
| Depth | 6.3 in |
|---|---|
| Height | 1.1 in |
| Weight | 2.25 lbs |
| Width | 7.6 in |
Environmental Parameters
| Humidity Range Operating | 10 – 85% (non-condensing) |
|---|---|
| Max Operating Temperature | 122 °F |
| Min Operating Temperature | 32 °F |
| Brand | Cisco |
|---|---|
| Manufacturer | CISCO DS HARDWARE DIRECT |
| Model | 1109 |
| Packaged Quantity | 1 |
Interface Provided
| Connector Type | RJ-45 |
|---|---|
| Interface | Ethernet 1000Base-T/1000Base-X |
| Qty | 1 |
| Type | WAN |
| Interface | Ethernet 1000Base-T |
| Qty | 2 |
| Type | LAN |
| Type | USB 3.0 |
| Service Provider | Verizon Wireless |
Mobile Broadband
| Cellular Protocol | LTE |
|---|
Flash Memory
| Installed Size | 4 GB |
|---|
Networking
| Form Factor | Desktop |
|---|---|
| Type | Router |
| WAN Ports Qty | 1 |
RAM
| Installed Size | 4 GB |
|---|
