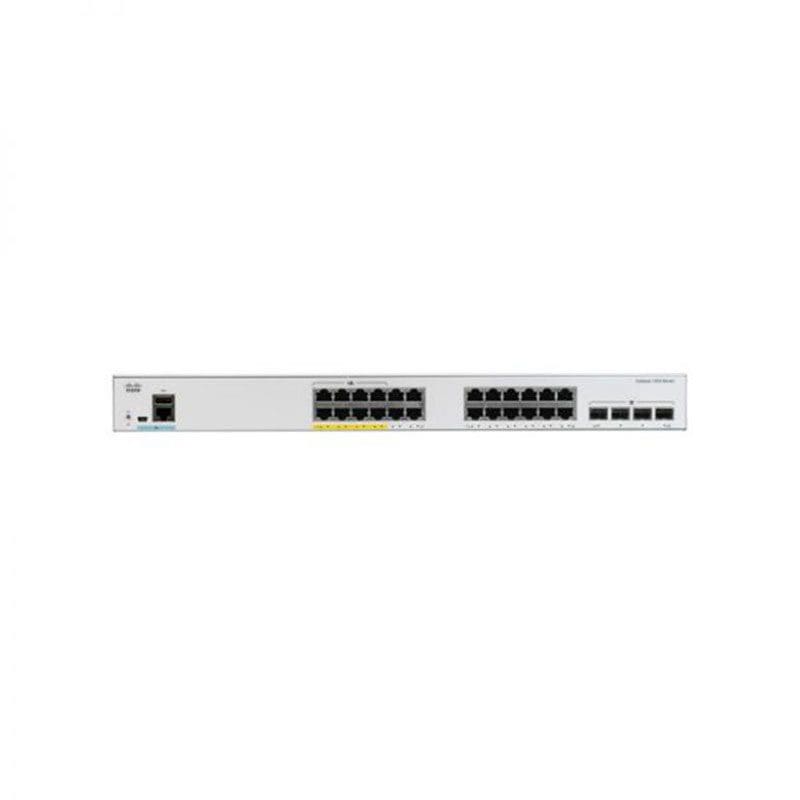

C1000-24FP-4X-L Technical Specifications
Cisco Catalyst 1000 with 24 Port
| Product Line |
Cisco Catalyst |
| Product Series |
C1000 |
| Hardware |
|
| Interface |
24x 10/100/1000 Ethernet ports, 4 SFP uplinks |
| Ethernet Technology |
Gigabit Ethernet |
| PoE power budget |
370W |
Available PoE power per port 30W for any 8 ports or 15W for 24 ports
- Console ports
- 1x RJ-45 Ethernet
| USB |
mini-B |
| USB-A port for storage and Bluetooth console |
Indicator LEDs
| Per-port status |
link integrity, disabled, activity |
| System status |
system |
| Dimensions |
(WxDxH in inches) 17.5 x 9.45 x 1.73 |
| Weight |
2.78 |
Memory and processor
| CPU |
- ARM v7 800 MHz
- DRAM
- 512 MB
|
Flash Memory
Performance
- Forwarding bandwidth
- 64 Gbps
- Switching bandwidth
- 128 Gbps
| Forwarding rate |
- (64 ‑ bytes L3 packets)
- 41.67 Mpps
- Unicast MAC addresses
- 15,360
|
