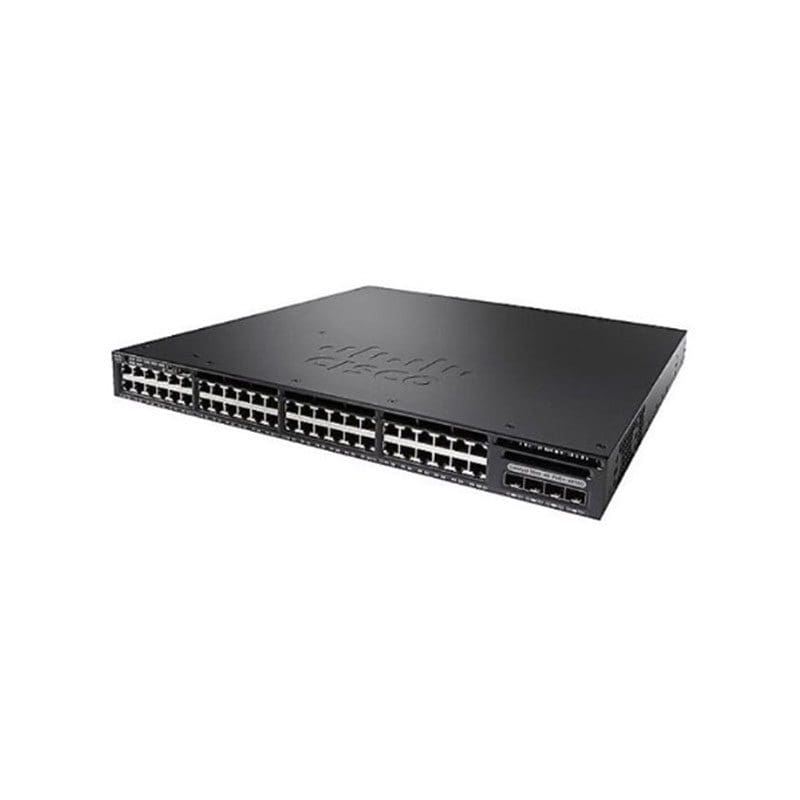

C1-WS3650-48UR/K9 Technical Specifications
Cisco ONE Catalyst 3650 48 Port mGig, 8x10G Uplink, LAN Base
| Product Line | Cisco ONE Catalyst |
|---|---|
| Product Series | C1-WS3650 |
| Device Type | Switch – 48 ports – L3 – managed – stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 36 x 10/100/1000 (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) + 8 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | UPOE |
| PoE Budget | 660 W |
| Performance | Switching capacity: 472 Gbps ¦ Forwarding performance: 351.19 Mpps ¦ Stacking bandwidth: 160 Gbps |
| Capacity | IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Virtual interfaces (VLANs): 4094 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | RIP-1, RIP-2, static IP routing, RIPng |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
