C1-WS3650-24UQ/K9 Technical Specifications

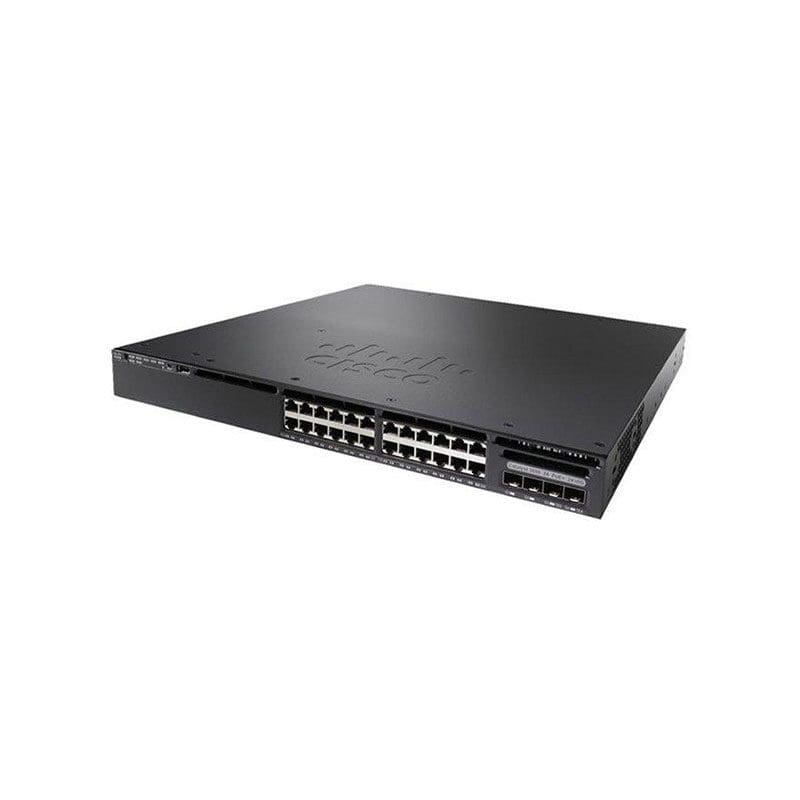

Cisco ONE Catalyst 3650 24 Port mGig,
| Product Line | Cisco ONE Catalyst |
|---|---|
| Product Series | C1-WS3650 |
| Device Type | Switch – 24 ports – managed – stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ |
| Power | Over Ethernet (PoE) PoE+ |
| PoE Budget | 390 W |
| Performance | Switching capacity: 88 Gbps ¦ Forwarding performance: 41.66 Mpps |
| Capacity | IPv4 routes: 24000 ¦ Virtual interfaces (VLANs): 255 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Full duplex capability, layer 2 switching, DHCP support, auto-negotiation, ARP support, trun king, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, |
