C1-N9KC93180FXB18Q Technical Specifications

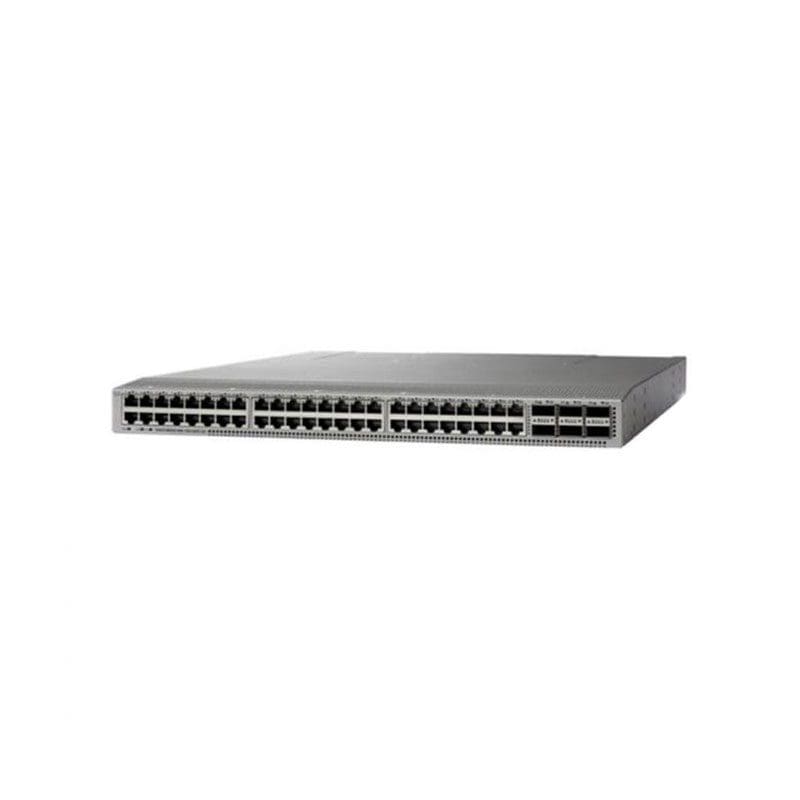

Cisco ONE Nexus 93180YC-FX – PID Bundle Switch 48 ports Managed Rack Mountable
Interface Provided
| Comments | Downlink |
|---|---|
| Connector Type | SFP+ |
| Qty | 48 SFP+ |
| Type | 1/10/25Gbit LAN / 8/16/32Gb Fibre Channel |
| Comments | Uplink |
| Connector Type | QSFP28 |
| Qty | 6 |
| Type | 100Gbit/40Gbit LAN |
| Connector Type | RJ-45 |
| Qty | 1 |
| Type | Management |
| Type | Serial (RS-232) |
| Type | USB |
Networking
| Advanced Switching | Layer 3 |
|---|---|
| Compliant Standards | IEEE 802.1ae |
| Features | 4 fans, 40MB system buffer, Access Control List (ACL) support, Ethernet Virtual Private Network (EVPN), MACsec support, Multiple Spanning Tree Protocol (MSTP) support, Power On Auto Provisioning (POAP), Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Virtual Extensible LAN (VXLAN), Virtual PortChannel (vPC) technology |
| Form Factor | Rack-mountable |
| MAC Address Table Size | 512K entries |
| Manageable | Yes |
| Ports Qty | 48 |
