C1-N9K-C9396TXB18Q Technical Specifications

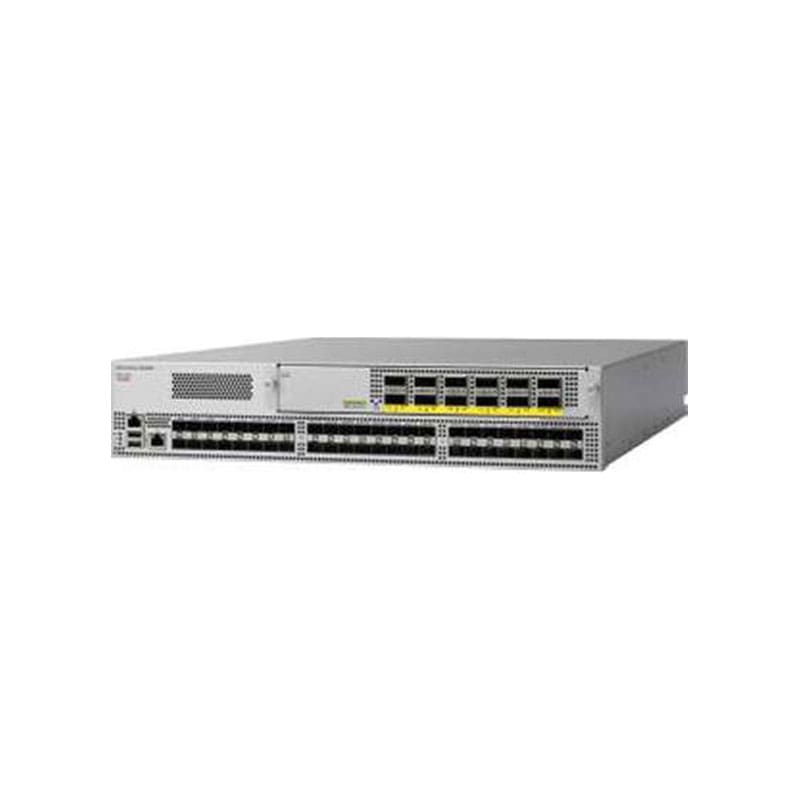

Cisco Systems One 2 Nexus 9396TX with 8 QSFP-40G-SR-BD
| Manufacturer Part Number | C1-N9K-C9396TXB18Q |
|---|---|
| Product Type | Layer 3 Switch |
| Manageable | Yes |
| Ethernet Technology | 10 Gigabit Ethernet, 40 Gigabit Ethernet |
| Number of Total Expansion Slots | 12 |
| Product Family | Nexus 9300 |
| Stack Port | No |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 48 |
| Redundant Power Supply Supported | Yes |
| Expansion Slot Type | QSFP+ |
| Form Factor | Rack-mountable |
| Power Source | Power Supply |
| Layer Supported | 3 |
| Environmentally Friendly | Yes |
| Compatible Rack Unit | 2U |
| Modular | Yes |
| Uplink Port | No |
| Port / Expansion Slot Details | 48 x 10 Gigabit Ethernet Network, 12 x 40 Gigabit Ethernet Expansion Slot |
| Height | 3.5″ |
| Width | 22.5″ |
| Depth | 17.5″ |
| Product Series | 9300 |
| Product Model | 9396TX |
| Network Technology | 10GBase-T, 40GBase-X |
| Product Line | Nexus |
| Packaged Quantity | 2 |
