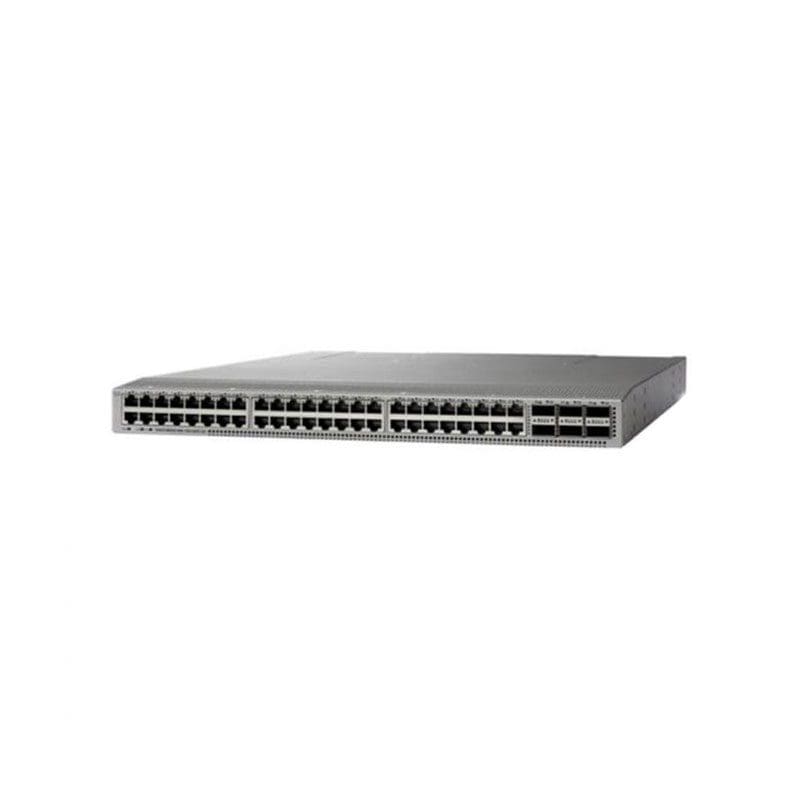

C1-N9K-C93180EXB24 Cisco ONE Nexus 93180YC-EX, 48 port with 1 x

Brand:

C1-N9K-C93180EXB24 Overview

The Cisco Nexus 93180YC-EX Switch is a 1-rack-unit (1RU) switch with latency of less than 1 microsecond that supports 3.6 terabits per second (Tbps) of bandwidth and over 2.8 billion packets per second (bpps). The 48 downlink ports on the 93180YC-EX can be configured to work as 1-, 10-, or 25- Gbps ports, offering deployment flexibility and investment protection. The uplink can support up to six 40- and 100-Gbps ports, or a combination of 10-, 25-, 40-, 50-, and 100-Gbps connectivity, offering flexible migration options.

$32,999.00

Shipping calculated at checkout.
or
SKU: C1-N9K-C93180EXB24 Categories: Brand:

C1-N9K-C93180EXB24 Technical Specifications

Cisco ONE Nexus 93180YC-EX Switch 48 ports Rack Mountable with 1 x

Interface Provided

Comments Downlink
Connector Type SFP+
Qty 48 SFP+
Type 1/10/25Gbit LAN
Comments Uplink
Connector Type QSFP28
Qty 6
Type 100Gbit LAN
Connector Type RJ-45
Qty 1
Type Management
Type Serial (RS-232)
Type USB

Networking

Advanced Switching Layer 3
Features 40MB system buffer, Ethernet Virtual Private Network (EVPN), High Availability, Hot swappable 4 fans, In-Service Software Upgrade (ISSU), Layer 3 switching, NPV Gateway mode, Side intake airflow, Source-Specific Multicast (SSM), Virtual Extensible LAN (VXLAN), Virtual PortChannel (vPC) technology
Form Factor Rack-mountable
MAC Address Table Size 512K entries
Ports Qty 48
Routing Protocol BGP, ECMP, EIGRP, HSRP, MPLS, MSDP, OSPF, PIM-SM, RIP, RIP-2
Subcategory Network hubs and switches
Subtype 25 Gigabit Ethernet
Type Switch
C1-N9K-C93180EXB24 Cisco ONE N...

$32,999.00
