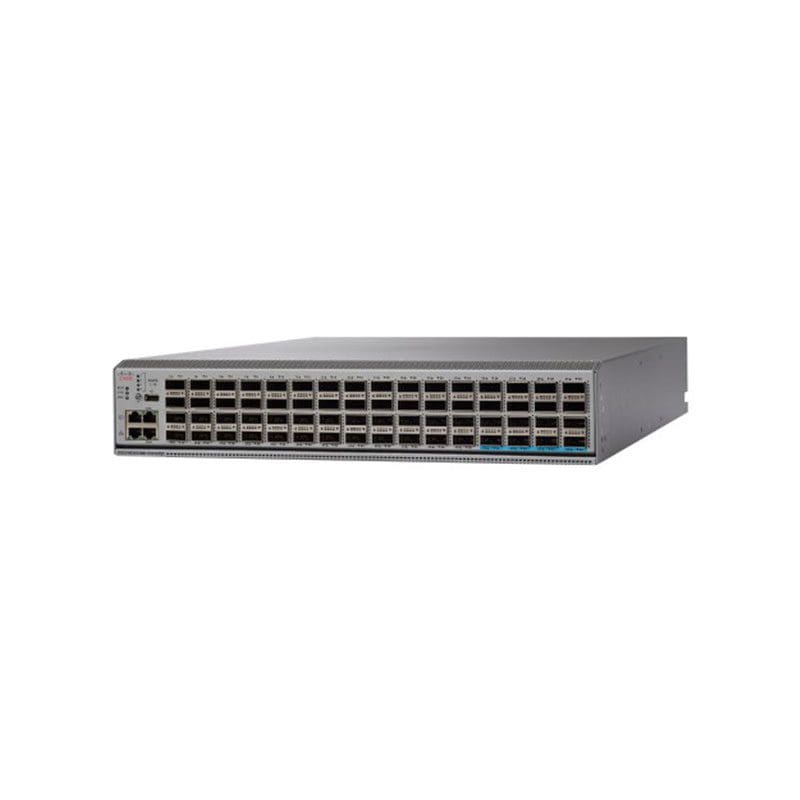

C1-N9K-C92304QC Cisco ONE Nexus 92304QC switch 56 port

Brand:

C1-N9K-C92304QC Overview

The Cisco Nexus 92304QC switch is a high-density 2RU switch that supports 6.08 Tbps of bandwidth and over 4.8 bpps across 56 40-Gbps QSFP+ ports and 8 100-Gbps QSFP28 ports. Up to 16 ports on the 92304QC can be converted into a total of 64 x 10-Gbps ports.

$28,888.00

Shipping calculated at checkout.
or
SKU: C1-N9K-C92304QC Categories: Brand:

C1-N9K-C92304QC Technical Specifications

Cisco ONE Nexus 92304QC Switch 56 ports Managed Rack Mountable

Interface Provided

Connector Type QSFP+ (breakout compatible)
Qty 56 Port
Type 40Gbit LAN
Connector Type QSFP28
Qty 8
Type 100Gbit LAN
Connector Type RJ-45
Qty 3
Type Management
Qty 1
Type USB
Type Serial (RS-232)

Networking

Advanced Switching Layer 3
Features Access Control List (ACL) support, Hot Standby Router Protocol (HSRP) support, IGMP snooping, Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Rapid Spanning Tree (PVRST), Port exhaust, Virtual Routing and Forwarding (VRF), VLAN support, VXLAN tunnel endpoints (VTEP) support
Form Factor Desktop, Rack-mountable
MAC Address Table Size 96K entries
Manageable Yes
Ports Qty 56
Routing Protocol BGP, ECMP, EIGRP, HSRP, MSDP, OSPF, PIM-SM, PIM-SSM, RIP-2
Subcategory Network hubs and switches
Subtype 40 Gigabit Ethernet
Type Switch
