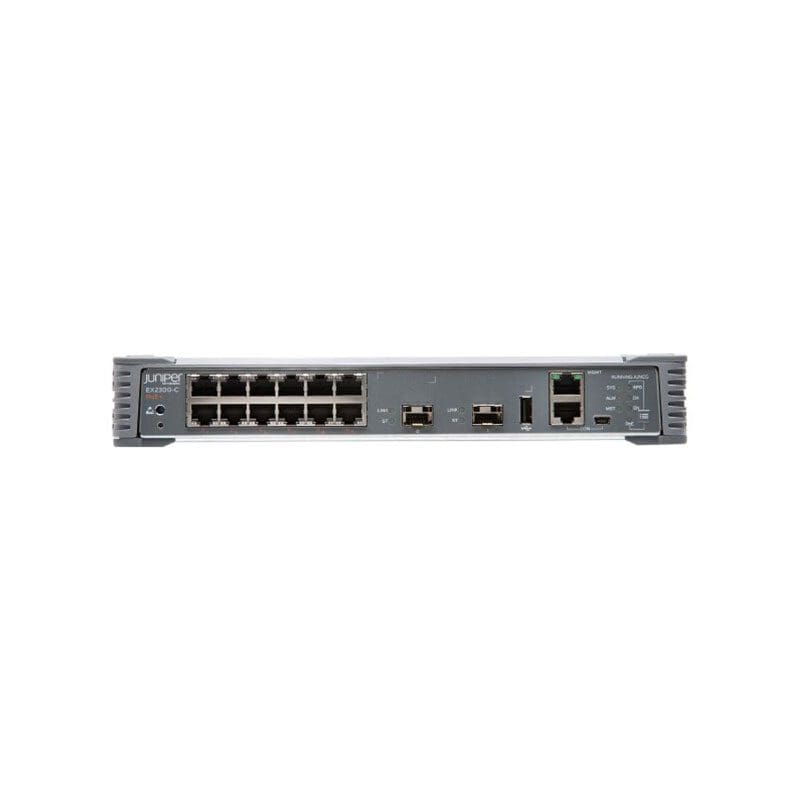

B-EX2300C12P-5M2-E Juniper EX Series EX2300-C-12P switch 12 ports
B-EX2300C12P-5M2-E Overview
The Juniper Networks EX2300-C Ethernet Switch delivers a compact, silent, and power-efficient platform for low-density branch deployments and commercial access or enterprise workgroup environments outside the wiring closet. Featuring 12 10/100/1000BASE-T access ports and two 10GbE uplink ports with and without Power over Ethernet (PoE/PoE+)
$2,799.00
Shipping calculated at checkout.
B-EX2300C12P-5M2-E Technical Specifications
Juniper Networks EX Series EX2300-C-12P switch 12 ports managed rack mountable
| Manufacturer | Juniper Mist Cloud Products |
|---|---|
| Brand | Juniper Networks |
| Product Line | Juniper Networks EX Series |
| Model | EX2300-C-12P |
| Packaged Quantity | :1 |
Processor
| Installed Qty | :1 |
|---|---|
| Manufacturer | ARM |
| Clock Speed | :1.25 GHZ |
RAM
| Installed Size | :2 GB |
|---|
Flash Memory
| Installed Size | :2 GB |
|---|
Performance
| Performance :Switching capacity | 64 Gbps, Throughput: 47 Mpps |
|---|
Capacity
| Capacity :IPv6 routes (Multicast) | 1024, IPv4 routes (Unicast): 512, QoS hardware queues per port: 8, IPv4 routes (Multicast): 2048, Virtual interfaces (VLANs): 2048, IGMP snooping entries: 1000, IPv6 routes (Unicast): 128, Multiple Spanning Tree Protocol instances: 64, LAG groups: 128, ARP entries: 1024, Maximum member ports per LAG: 8, IPv6 hosts: 2048, Maximum of neighboring networks: 750, IPv4 hosts: 4096 |
|---|
