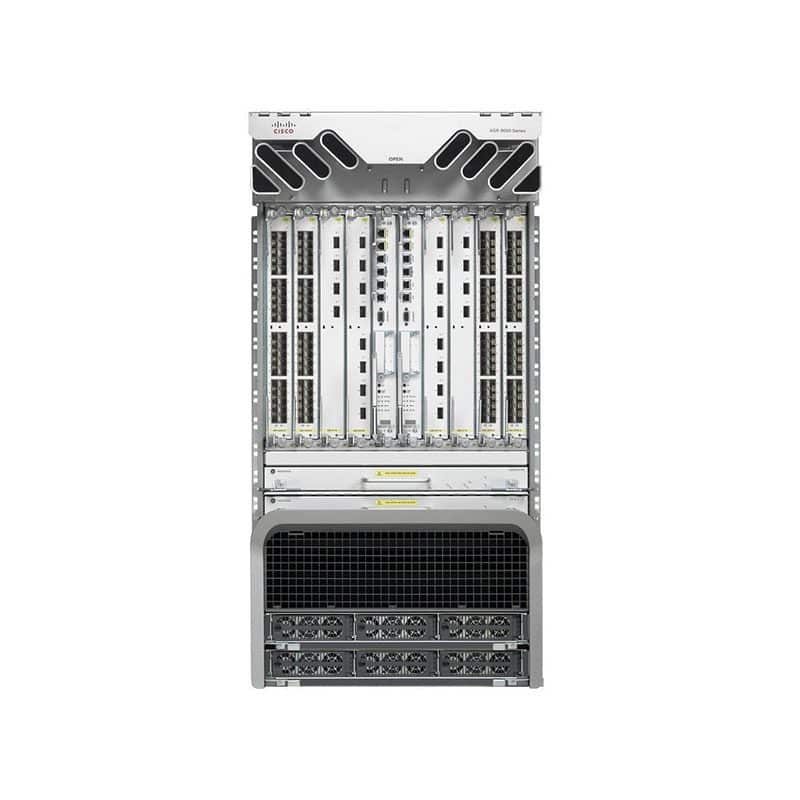

Refurbished ASR-9010-AC-V2 Cisco ASR 9010 AC Chassis
Refurbished ASR-9010-AC-V2 Overview
Cisco ASR 9010 AC Chassis with PEM Version 2 Spare
$3,489.00
Shipping calculated at checkout.
Refurbished ASR-9010-AC-V2 Technical Specifications
Cisco ASR 9010 AC Chassis with PEM Version 2 Spare
| Manufacturer | Cisco Systems, Inc |
|---|---|
| Manufacturer Part Number | ASR-9010-AC-V2 |
| Brand Name | Cisco |
| Product Series | ASR 9000 |
| Product Model | ASR 9010 |
| Product Name | ASR 9010 AC Chassis with PEM Version 2 Spare |
| Product Type | Router Chassis |
Technical Information
I/O Expansions
| Number of Total Expansion Slots | 10 |
|---|---|
| Expansion Slot Type | Line Card, Route Switch Processor |
Management & Protocols
| Security | Features |
|---|
Bridge-Protocol-Data-Unit Filtering
| Layer | 2 Control Protocol Filtering |
|---|---|
| Routing | Authentications |
Access Control List
| IP | Source Guard |
|---|
- MAC Limiting
- Secure Shell
- TACACS+
- AAA
Power Description
| Input Voltage | 120 V AC, 230 V AC |
|---|
Physical Characteristics
| Form Factor | Rack-mountable |
|---|---|
| Height | 36.8″ |
| Width | 17.5″ |
| Depth | 31.5″ |
| Weight (Approximate) | 191 lb |
Miscellaneous
| Certifications & Standards |
EMC Standards Emission
- FCC Class 47CFR15 A
- ICES 003 Class A
- AS/NZS CISRP22 Class A
- CISPR 22 (EN55022) Class A
- VCCI Class A
BSMI Class A
| Iec/En 61000-3-12 | Power Line Harmonics |
|---|---|
| Iec/En 61000-3-11 | Voltage Fluctuations and Flicker |
| En55022 | Information Technology Equipment (Emissions) |
| En 50121-4 | Railway EMC |
EMC Standards Immunity
| Iec/En-61000-4-2 | Electrostatic Discharge Immunity (8kV Contact, 15kV Air) |
|---|---|
| Iec/En-61000-4-3 | Radiated Immunity (10V/m) |
| Iec/En-61000-4-4 | Electrical Fast Transient Immunity (2kV Power, 1kV Signal) |
| Iec/En-61000-4-5 | Surge AC Port (4kV CM, 2kV DM) |
| Iec/En-61000-4-5 | Signal Surge Ports (1kV) |
| Iec/En-61000-4-5 | Surge DC Port (1kV CM, 1kV DM) |
| Iec/En-61000-4-6 | Immunity to Conducted Disturbances (10Vrms) |
| Iec/En-61000-4-8 | Power Frequency Magnetic Field Immunity (30A/m) |
| Iec/En-61000-4-11 | Voltage DIPS, Short Interruptions, and Voltage Variations |
| En55024 | Information Technology Equipment (Immunity) |
| En50082-1/En-61000-6-1 | Generic Immunity Standard |
| En 50121-4 | Railway EMC |
Safety
- UL/CSA/IEC/EN 60950-1
- IEC/EN 60825 Laser Safety
- ACA TS001
- AS/NZS 60950
- FDA Code of Federal Regulations Laser Safety
- OSHA Acoustic Requirements
