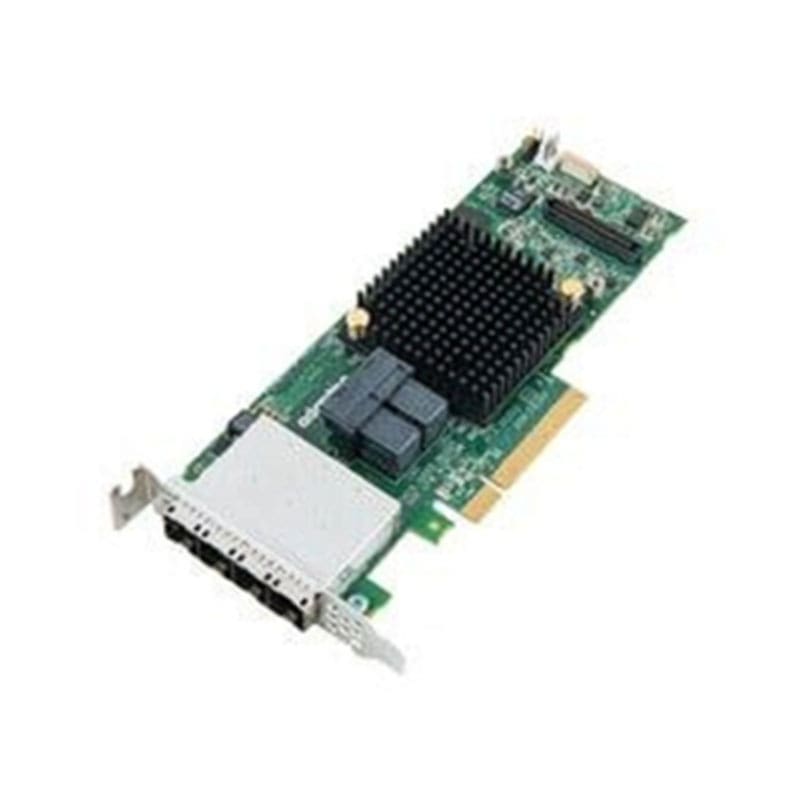

ASR-78165 Adaptec PMC SAS/SATA 6Gb/s PCIe x8 Controller
ASR-78165 Overview
The ASR-78165 is a high-performance Raid Controller manufactured by Adaptec, designed to meet the demands of modern data storage and retrieval systems. In this comprehensive review, we will delve into the key features and specifications of the ASR-78165, focusing on its 24 Ports, Peripheral Component Interconnect Express (PCIe) 3.0 x8 interface, and Serial-Attached SCSI (SAS) connectivity with a speed of 6 Gigabytes Per Second (GBPS).
$220.00
Shipping calculated at checkout.
ASR-78165 Technical Specifications
Adaptec PMC SAS/SATA 6Gb/s PCIe x8 Controller
| Manufacturer | ADAPTEC |
|---|
Specifications
| Raid Levels | 0, 1, 1e, 5, 6, 10, 50, 60 |
|---|---|
| Form Factor | Md2 – Low Profile, 2.535”h X 6.6”l (64mm X 167mm) |
| Ports | 8 Internal, 16 External |
| Connectors | 2 X Sff-8643, 4 X Sff-8644 |
| Bus Interface | 8-lane Pcie Gen3 |
| Processor | Pmc Pm8015 |
| Cache | 1024mb |
| Benefits | Ideal For Space-limited Entry-level Server To High-end Server Platforms And High-performance Workstations Without Compromising Robust 6gb/s Performance And Proven ADAPTEC Reliability. |
| Environmental Compliance | Rohs |
| Mtbf | 700,000 Hours At 40°c (ongoing Testing) |
Key Differentiators
- 24 Native Sas Ports
- Low Profile/md2 Form Factor
- Third Generation Zmcp (afm-700) Optional
- Complete Portfolio Of Sas Hd Cables Available
