ASR-5805Z Technical Specifications

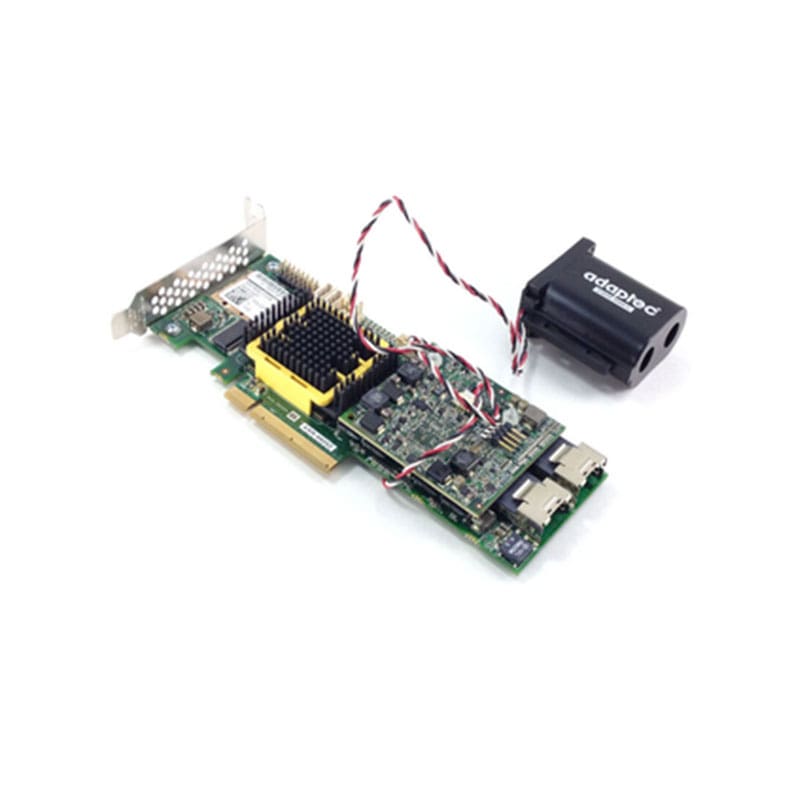

Adaptec 5z 5805z 8-Port PCI Express 8x SAS-SATA Raid Controller with 512MB Cache And Battery
| Manufacturer | Adaptec |
|---|---|
| Part Number or SKU# | ASR-5805Z |
| Product Type | Controller |
| Product Name | SAS-SATA |
Technical Specifications
| Controller Interface Type | Serial Ata-300 / Sas |
|---|---|
| Data Transfer Rate | 300 Mbps |
| Buffer Size | 512 Mb |
| Supported Devices | Hard Drive, Disk Array (raid) |
| Raid Level | Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Jbod, Raid 1e, Raid 5ee, Raid 60sasta |
| Processor | 1.2 Ghz |
Expansion / Connectivity
| Interfaces | 2 X Storage – Serial Ata-300 / Sas – 36 Pin 4i Mini Multilane Sas (sff-8087) ( Internal ) |
|---|---|
| compatible Slots | 1 X Pci Express X8 – Low-profile |
