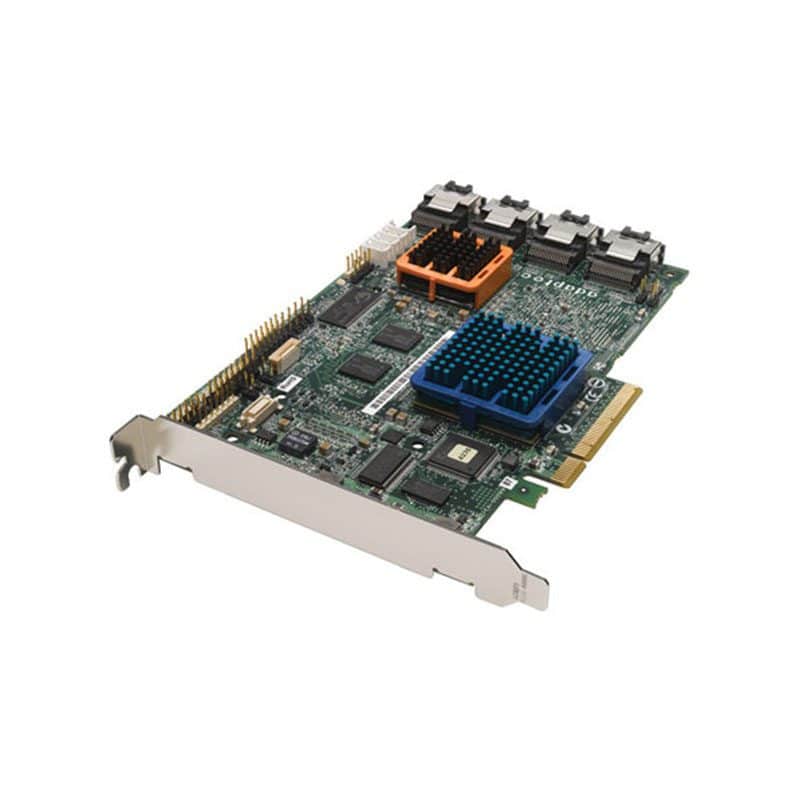

ASR-31605 Adaptec PCI-E X8 SAS-SATA W/256MB Cache Controller
ASR-31605 Overview
The Adaptec ASR-31605 PCI-E X8 SAS-SATA W/256MB Cache Controller Card is a high-performance hardware solution that enhances server performance by providing additional storage capabilities. It is designed to meet the needs of enterprise-level data centers and IT professionals who require fast and reliable storage solutions.
The Adaptec ASR-31605 Controller Card is a SAS (Serial Attached SCSI) and SATA (Serial Advanced Technology Attachment) RAID (Redundant Array of Independent Disks) controller that supports up to 16 SAS or SATA hard disk drives. The device comes equipped with a PCI Express x8 interface, which provides high-speed data transfer rates of up to 2.5 Gbps. This feature allows for faster data access and transfer rates, which is essential for enterprise-level applications.
$60.00
ASR-31605 Technical Specifications
Adaptec Raid 31605 16 Port PCI-Express X8 SAS-SATA Raid Controller Card with Complete Kits And 256MB Cache with Battery
| Manufacturer | Adaptec |
|---|---|
| Part Number or SKU# | ASR-31605 |
| Product Type | Controller |
| Product Name | SAS-SATA |
Technical Specifications
| Host Interface | PCI Express X8 |
|---|---|
| Data Transfer Rate | Up To 300mbps Per Port |
| Raid Levels | 0, 1, 1e, 5, 5ee, 6, 10, 50, 60, Jbod |
| Drive Support | Up To 16 X Physical |
| Platform Support | Pc, Unix, Solaris |
| Standard Memory | 256MB Ddr2 |
| Interfaces/ports | Ports 4 X Sff-8087 Sas 300 – Serial Attached Scsi Internal |
| Form Factor | Pci Express X8 Plug-in Card |
Dimensions
| Width | 6.6 Inch |
|---|---|
| Height | 4.6 Inch |
