ASA5508-FTD-K9 Technical Specifications

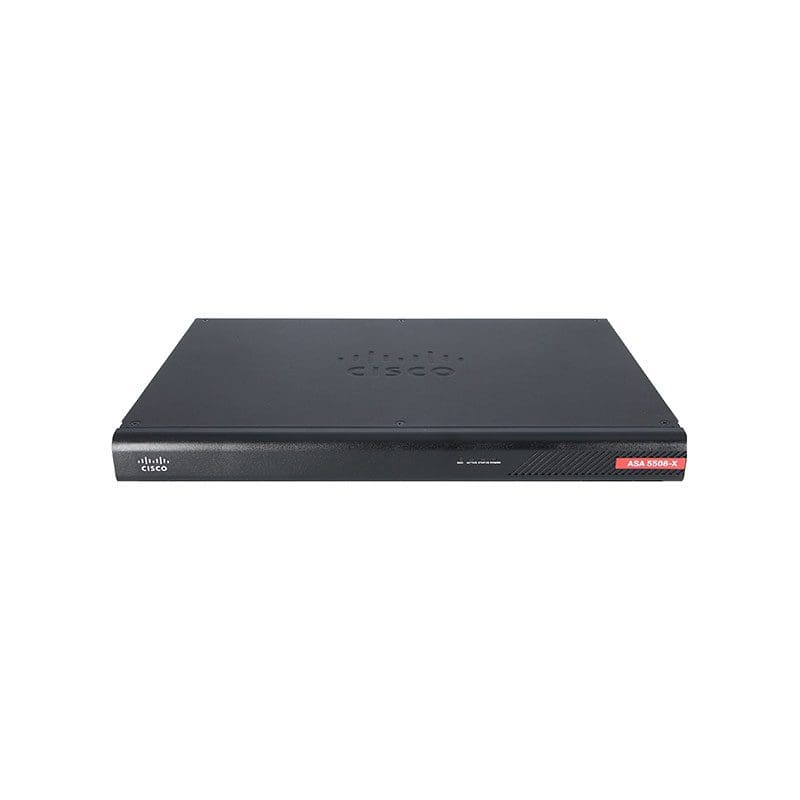

Cisco ASA 5508-X with Firepower Threat Defense Security Appliance
| Manufacturer |
Cisco Systems |
| Brand |
Cisco |
| Product Line |
Cisco ASA |
| Model |
5508-X with Firepower Threat Defense |
RAM
Flash Memory
Hard Drive
| Type |
|
| Form |
Factor |
| mSATA |
| Installed Qty |
|
Capacity
Performance
Performance
| Application control (AVC) and NGIPS throughput |
250 Mbps, Application control (AVC) or IPS sizing throughput: 180 Mbps, Application control (AVC) throughput: 450 Mbps, Multiprotocol firewall throughput: 500 Mbps, Stateful throughput: 1 Gbps, VPN throughput (3DES/AES): 175 Mbps |
Capacity
Capacity
| Concurrent sessions |
100000, IPSec VPN peers: 100, New connections per second: 10000, Virtual interfaces (VLANs): 50 |
Networking
Type
| Security |
appliance |
| Form |
Factor |
Rack-mountable
| Ports |
Qty |
| 8 |
| Connectivity |
Technology |
| Wired |
| Data Link Protocol |
- Ethernet, Fast Ethernet, Gigabit Ethernet
|
Features
| Firewall protection, VLAN support, VPN support |
Interface Provided
1 x 1000Base-T (management) – RJ-45, 1 x console – RJ-45, 1 x mini-USB, 1 x USB 2.0 – Type A, 8 x 1000Base-T – RJ-45
Software
| Type |
- Cisco Threat Defense 6.0.1
|
Power Device
| Type |
- External power adapter
- Nominal Voltage
- AC 120/230 V
|
| Frequency |
Required |
| 50/60 hertz |
Miscellaneous
| Height |
(Rack Units) |
| 1 |
| Encryption |
Algorithm |
- AES, Triple DES
- Compliant Standards
CISPR 22, CISPR 24, CNS 13438, EN 300 386 V1.6.1, EN 300.489.1, EN 61000-3-2, EN 61000-3-3, EN55022, EN55024, FCC CFR47 Part 15, ICES-003, VCCI V-3
Dimensions & Weight
| Width |
- 17.2 inch
- Depth
- 11.3 inch
- Height
- 1.7 inch
- Weight
- 6.61 lbs
|
Service & Support
| Type |
|
| Service & Support |
Details |
Service & Support
Limited warranty – advance parts replacement – 90 days – response time: 10 days
Environmental Parameters
| Min Operating Temperature |
|
| Max |
Operating Temperature |
| 104 degree Fahrenheit |
