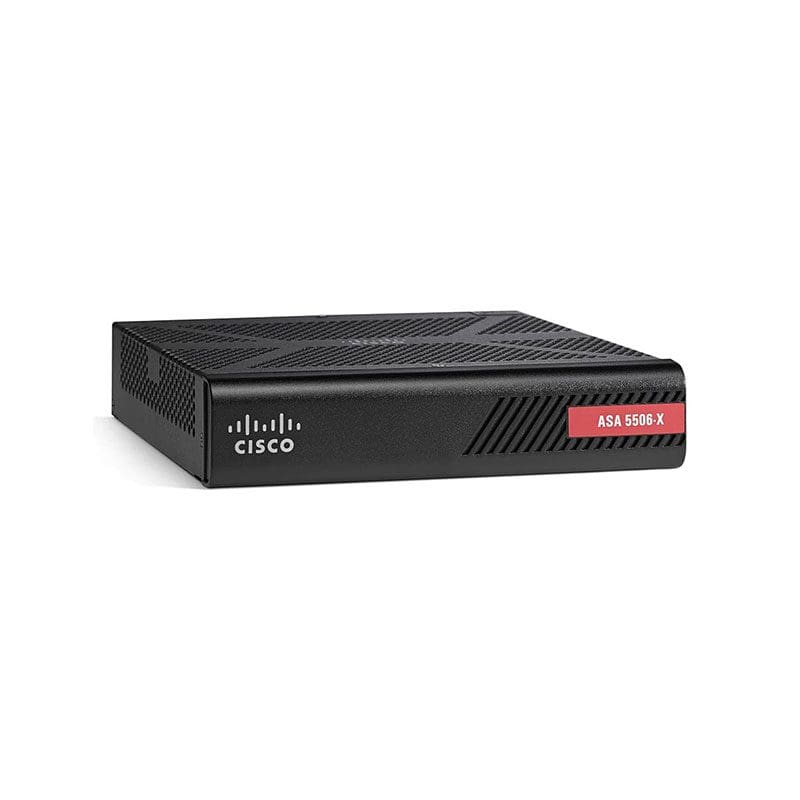

Refurbished ASA5506-K9 Technical Specification
Cisco ASA 5506-X W/ FIREPOWER SVC
Networking
| Form Factor | Desktop |
|---|---|
| Ports Qty | 8 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Performance Inspection throughput | 750 Mbps ¦ Multiprotocol firewall throughput: 300 Mbps ¦ Connection rate: 5000 connections per second ¦ Application control (AVC) throughput: 250 Mbps ¦ Application control (AVC) and IPS throughput: 125 Mbps ¦ VPN throughput (3DES/AES): 100 Mbps ¦ Application control (AVC) or IPS sizing throughput: 90 Mbps |
| Capacity Concurrent sessions | 20000 (maximum 50000) ¦ Cisco AnyConnect Premium/Apex VPN peers: 2 (maximum 50) ¦ IPSec VPN peers: 10 (upgradeable to 50) ¦ Virtual interfaces (VLANs): 5 (upgradeable to 30) |
| Features | Firewall protection, VPN support, VLAN support, fanless |
| Encryption Algorithm | Triple DES, AES |
Environmental Parameters
| Min Operating Temperature | 32 °F |
|---|---|
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
General
| Device Type | Security appliance |
|---|---|
| Width | 9.2 in |
| Depth | 7.9 in |
| Height | 1.7 in |
| Weight | 4.01 lbs |
Processor / Memory / Storage
| RAM | 4 GB |
|---|---|
| Flash Memory | 8 GB |
| Hard Drive | SSD 50 GB x 1 – mSATA |
Expansion / Connectivity
| Interfaces | 1 x 1000Base-T (management) – RJ-45 ¦ 1 x USB 2.0 – Type A ¦ 1 x mini-USB ¦ 1 x console – RJ-45 ¦ 8 x 1000Base-T – RJ-45 |
|---|
Power
| Power Device | External power adapter |
|---|---|
| Voltage Required | AC 120/230 V (50/60 Hz) |
