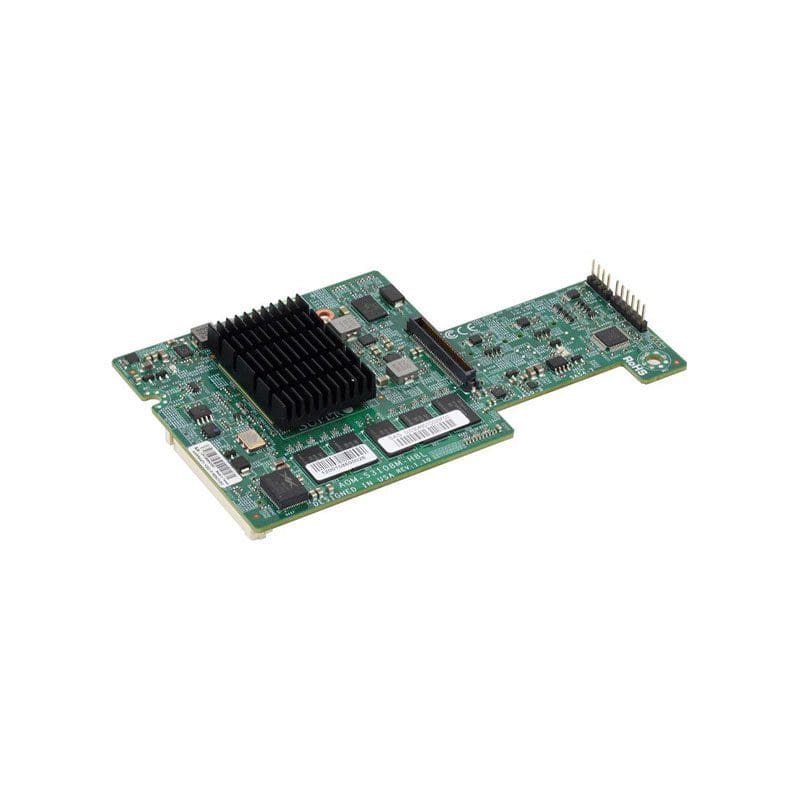

AOM-S3108M-H8L-O Supermicro Low Profile 12Gbps SAS Internal RAID
AOM-S3108M-H8L-O Overview
Supermicro Low Profile 12Gbps 8-Port SAS Internal RAID Mezzanine Card
$834.00
Shipping calculated at checkout.
AOM-S3108M-H8L-O Technical Specifications
Supermicro Low Profile 12Gbps 8-Port SAS Internal RAID Mezzanine Card
| Device Type | Storage Mezzanine Cards |
|---|---|
| Dimensions (WxDxH) | 5.2″ x 3.2″ inches |
| Form Factor | Low Profile |
| Interface (Bus) Type | PCI-E Gen-3 8Gbps |
| Type Power Consumption | 16w |
| Storage | Controller |
| Channel Quantity | 8x Internal ports – 12Gb/s per ports |
| RAID Level | 0,1,5,6,10,50,60 MegaRAID storage manager |
Miscellaneous
| Features Controller Chip | LSI SAS 3108 |
|---|---|
| Cache Protection | BTR-CV3108-U1 |
| Compatibility Motherboard | X10DSC+ |
| RoHS | RoHS, Pb free |
Memory
| RAM | 2GB 1866MHz DDR3 on-card cache |
|---|
Software / System Requirements
| OS | Supports SUSE Linux |
|---|
- Windows Vista, Windows 7, Windows 2012, Windows Server 2003/2008
- Red Hat Enterprise, Red Hat Linux
