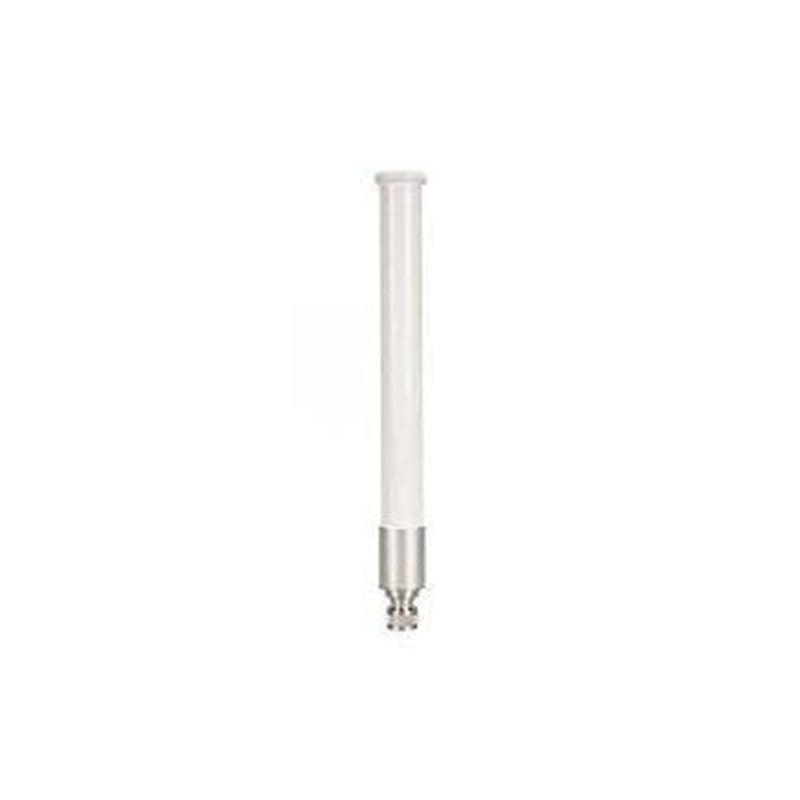

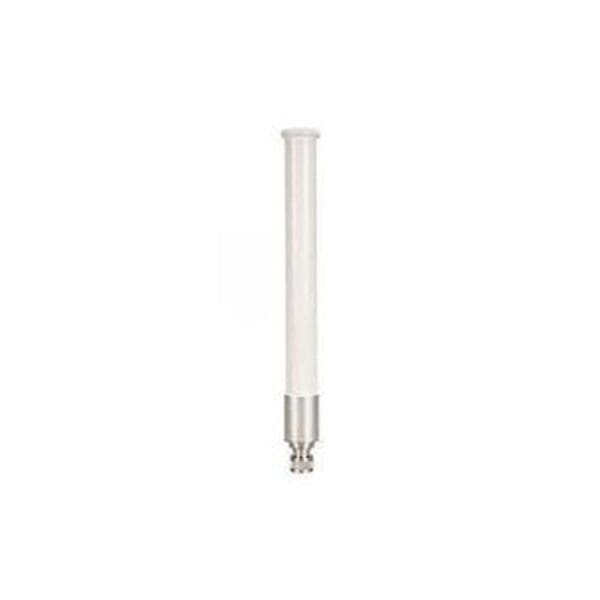

ANT-LPWA-DB-O-N-5 Cisco Antenna

Brand:

 ANT-LPWA-DB-O-N-5 Overview

5 dBi
omni-directional
outdoor
wall-mountable
pole mount

$328.00

Shipping calculated at checkout.
or
SKU: ANT-LPWA-DB-O-N-5 Categories: Brand:

ANT-LPWA-DB-O-N-5

Cisco Antenna

Manufacturer Cisco Systems
Brand Cisco
Product Line Cisco
Packaged Quantity :1

General

Product Type Antenna
Category of Accessory Antennas
Package Content :2 mounting brackets, 2 x hex bolts, 2 x V-bolt clamps, 4 flat washers, 4 x hex nuts, 4 x split lock washers, Hold anodized sleeve, Top cap with N (female) connector, UV-resistant fiberglass radome

Antenna

Gain :5 dBi
Antenna Placing / Mounting Outdoor, Pole mount, Wall-mountable
Directivity Omni-directional
Frequency Range :863 – 928 MHz

Impedance :50 ohm

Compatibility ISM, LoRaWan, WPAN
Voltage Standing Wave Ratio (VSWR) :1.5:1, 1.65:1 Max

Horizontal Beamwidth :360°

Vertical Beamwidth :30°

Interface Provided

Connector Provided :1 x N connector female

Cabling & Wiring

Compliant Standards IP67

Miscellaneous

Color White
Color Category White
Features DC-grounded for ESD protection, IP67 protection, Lightning-resistant, Vertical polarisation

Dimensions & Weight

Width :1.3 inch
Depth :1.3 inch
Height :27.2 inch
Weight :27.86 ounce

Environmental Parameters

Min Operating Temperature -40 degree Fahrenheit
Max Operating Temperature :158 degree Fahrenheit
