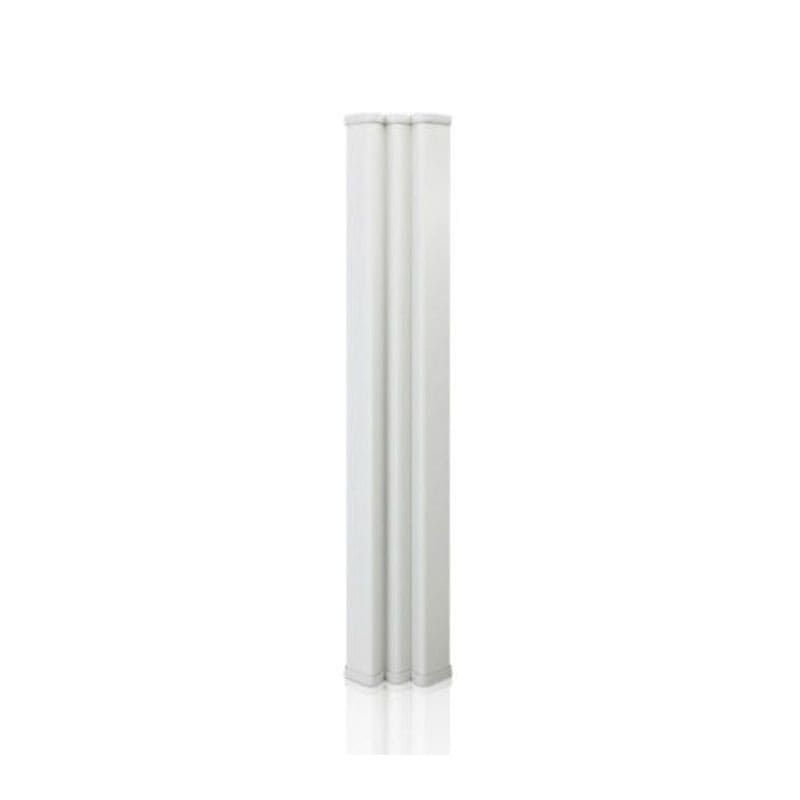

AM-5G20-90 Ubiquiti Networks 5GHz Airmax Basestation 20dbi 90 Deg Rocket Kit
AM-5G20-90 Overview
Ubiquiti Networks 5GHz Airmax Basestation 20dbi 90 Deg Rocket Kit. The airMAX Sector Antenna is a carrier class 2 x 2 dual polarity MIMO Sector Antenna that was designed to seamlessly integrate with RocketM radios. Pair the RocketM’s radio with the airMAX Sector Antenna’s reach to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience.
$135.00
Shipping calculated at checkout.
AM-5G20-90 Technical Specifications
Ubiquiti Networks 5GHz Airmax Basestation 20dbi 90 Deg Rocket Kit
| Brand | Ubiquiti |
|---|---|
| Product Line | Ubiquiti AirMax |
| Model | Sector 5G-90-20 |
| Manufacturer | Ubiquiti |
Technical Information
| Antenna Gain | 20.3 dBi |
|---|---|
| Antenna Placement | Outdoor |
| Frequency Range | 5.15 – 5.85 GHz |
| Horizontal Beamwidth | 91° |
| Vertical Beamwidth | 85° |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
Product Information
| Category of Accessory | Antennas |
|---|---|
| Mounting Kit | Included |
| Packaged Quantity | 1 |
| Service Activation | No |
| Stylus Type | Antenna |
Dimensions & Weight
| Height | 70 centimetre |
|---|---|
| Weight | 5.9 kilogram |
| Width | 14.5 centimetre |
| Depth | 9.3 centimetre |
