Refurbished AIR-CAP1532I-E-K9 Technical Specification

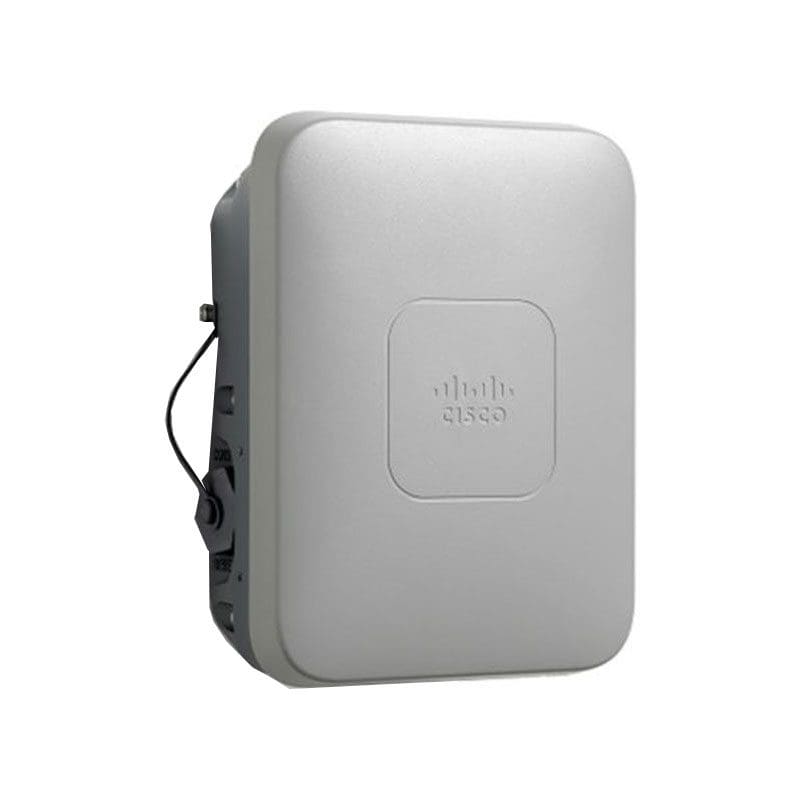

Cisco Aironet wireless access point
Networking
| Form Factor | External |
|---|---|
| Connectivity Technology | Wireless |
| Data Transfer Rate | 300 Mbps |
| Line Coding Format | CCK |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Network / Transport Protocol | L2TP, IPSec |
| Frequency Band | 2.4 GHz, 5 GHz |
| Features | MAC address filtering, DFS support, VPN passthrough, reset button, 2T3R MIMO technology, 3T3R MIMO technology, Cisco BandSelect technology, Cisco VideoStream technology |
| Encryption Algorithm | LEAP, AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2 |
| Authentication Method | X.509 certificates |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, X.509, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n |
Environmental Parameters
| Max Operating Temperature | 149 °F |
|---|
General
| Device Type | Wireless access point |
|---|---|
| Ruggedized Design | Outdoor |
| Width | 9.1 in |
| Depth | 6.7 in |
| Height | 3.9 in |
| Weight | 5.07 lbs |
Expansion / Connectivity
| Interfaces | 1 x 1000Base-T – RJ-45 ¦ 1 x 1000Base-T – RJ-45 (WAN) ¦ 1 x management – RJ-45 |
|---|
Power
| Power Over Ethernet (PoE) Supported | PoE |
|---|---|
| Power Consumption Operational | 30 Watt |
Antenna
| Antenna | Internal |
|---|
