Refurbished AIR-AP1852E-Q-K9 Technical Specifications

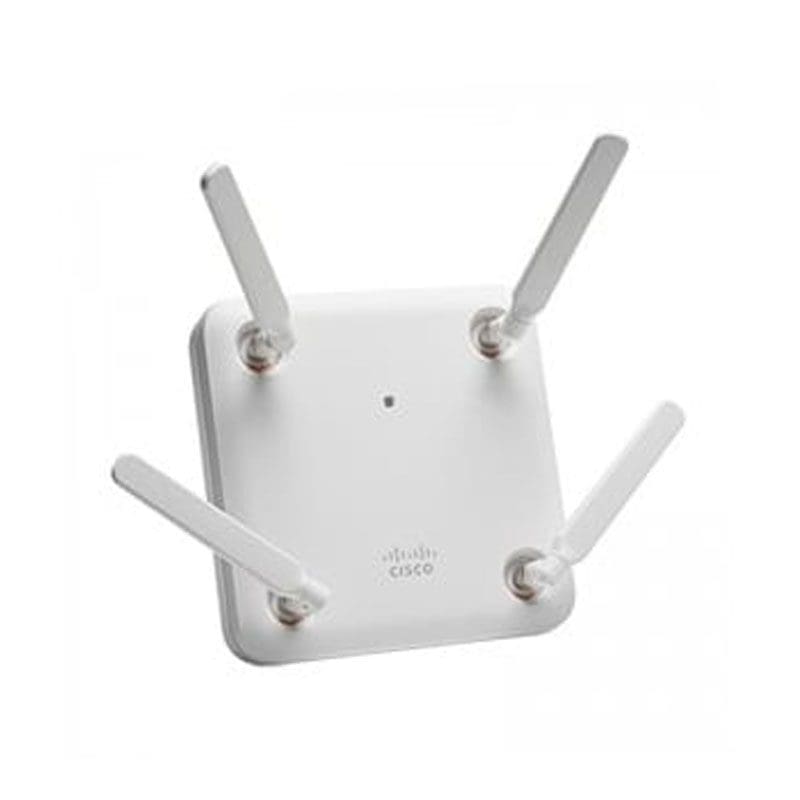

Cisco Aironet 1852E Access Point
| Part |
Number |
| AIR-AP1852E-Q-K9 |
| Description |
- 802.11ac Wave 2 Access Point, 4×4:4, External-Ant, Q Regulatory Domain
|
Features
- – 4×4 MIMO with four spatial streams, single-user MIMO
- – 4×4 MIMO with three spatial streams, multiuser MIMO
- – MRC
- – 802.11ac beamforming (transmit beamforming)
- – 20-, 40-, and 80-MHz channels
– PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz)
| – Packet aggregation |
A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) |
- – 802.11 DFS
- – CSD support
Regulatory Domain
Q (Q regulatory domain)
- – 2.412 to 2.472 GHz; 3 channels
- – 5.180 to 5.320 GHz; 8 channels
- – 5.500 to 5.700 GHz; 11 channels
Antenna
| External Antenna |
| Interfaces |
- – 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
- – 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation)
- – Management console port (RJ-45)
- – USB 2.0 (enabled via future software)
|
| Dimensions (W x L x H) |
- 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
|
| Weight |
|
