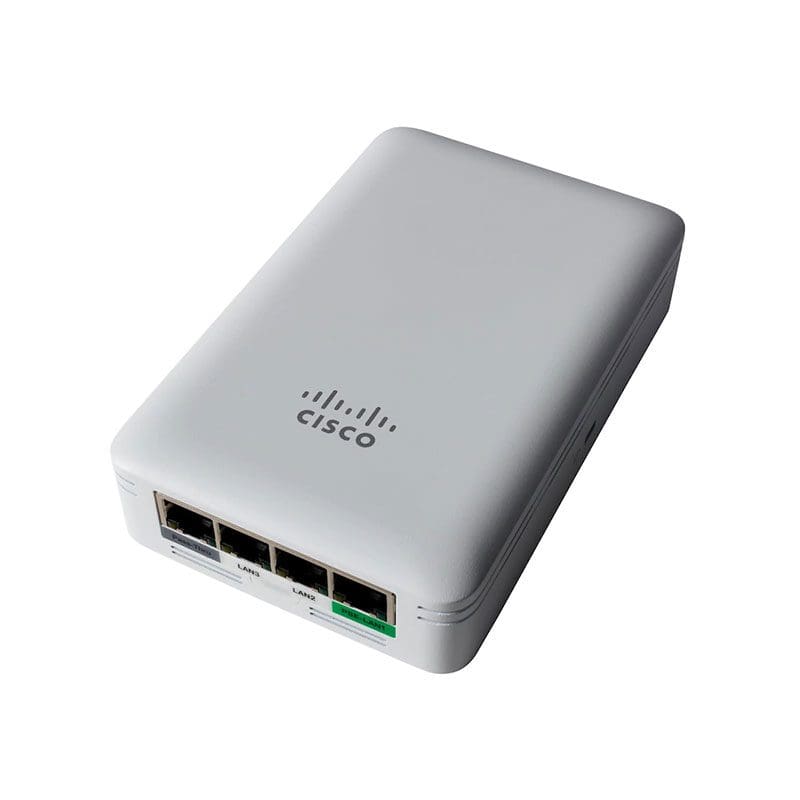

AIR-AP1815W-A-K9C Cisco Aironet 1815W Access Point

AIR-AP1815W-A-K9C Technical Specifications

Cisco Aironet 1815W 802.11ac Wave 2 Access Point

Authentication and security

• 802.1X, RADIUS authentication, authorization and accounting (AAA)
• 802.11r
• 802.11i

Software

Supported WLAN COntrollers

• Cisco Mobility Express
• 802.11ac
• 2×2 single-user/multiuser MIMO with two spatial streams
• Maximal ratio combining (MRC)
• 20-, 40-, and 80-MHz channels
• PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)

• 802.11 Dynamic Frequency Selection (DFS)
• Cyclic shift diversity (CSD) support

Bluetooth (future Availability)

Integrated Bluetooth 4.1 (including BLE) radio

System

• 1 GB DRAM
• 256 MB flash
• 710 MHz quad-core

Powering options
