Refurbished AIR-AP1810W-D-K9 Technical Specifications

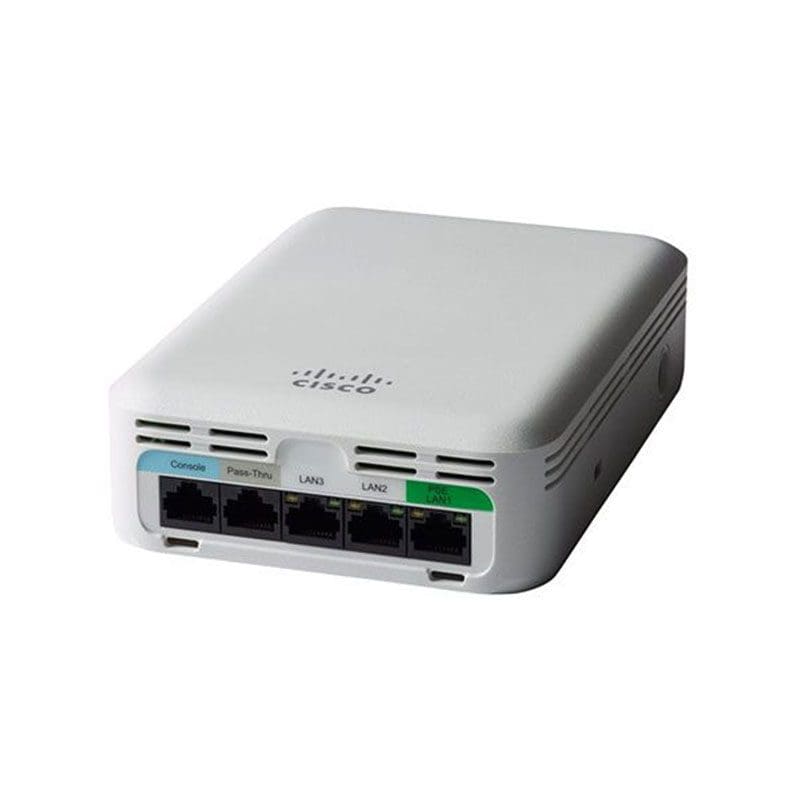

Cisco Aironet 1810W Access Point
- Authentication and security
- Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)
- 802.1X, RADIUS authentication, authorization and accounting (AAA)
- 802.11i
Software
Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.2.111.0 or later
| Maximum |
clients |
| Maximum number of associated wireless clients |
200 per Wi-Fi radio, in total 400 clients per access point |
- 802.11ac
- 2×2 single-user/multiuser MIMO with two spatial streams
- Maximal ratio combining (MRC)
- 20-, 40- and 80-MHz channels
- PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
| Packet aggregation |
A-MPDU (Tx/Rx), A-MSDU (Rx) |
| 802.11 Dynamic Frequency Selection (DFS) |
Cyclic shift diversity (CSD) support
- Authentication with 802.1X or MAC filtered
- Dynamic VLAN or per port
- Traffic locally switched or tunneled back to wireless LAN controller
- Bluetooth (future availability)
Integrated Bluetooth 4.1 (including BLE) radio
| Maximum transmit power |
5 dBm |
| Antenna gain |
2 dBi |
- Integrated antennas
- 2.4 GHz, gain 2 dBi
- 5 GHz, gain 4 dBi
| Interfaces |
- One 10/100/1000BASE-T PoE uplink port
|
| Management |
console port (RJ-45) |
| Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port: |
◦ PoE out provides 802.3af when access point is powered by Cisco local power supply (AIR-PWR-C=, AIR-PWR-D=), or ~6.5W when powered by 802.3at, or no output when powered by 802.3af
- One passive pass-through port RJ-45 (back to bottom)
- DC power connector
- Indicators
Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
| Per-port status for local Ethernet ports |
For privacy, LEDs are automatically turned off when the access point joins a controller. LEDs may be enabled to be administratively – see configuration guide.
| Dimensions |
(W x L x H) |
| Access point (without mounting bracket) |
6.5 x 4.5 x 1.6 in. (165 x 114 x 41 mm) |
Weight
| Access point without mounting bracket or any other accessories |
1.2 lb (560 g) |
Environmental
| Nonoperating (storage) temperature |
-22° to 158°F (-30° to 70°C) |
| Nonoperating (storage) maximum altitude |
25°C, 15,000 ft (4,500m) |
| Operating temperature |
32° to 104°F (0° to 40°C) |
| Operating humidity |
10% to 90% percent (noncondensing) |
| Operating maximum altitude |
40°C, 9843 ft (3,000m) |
- System
- 512 MB DRAM
- 256 MB flash
- 1.4 GHz system dual-core CPU
| Input |
power requirements |
| 44 to 57V DC |
| Optional power supply and power injector |
100 to 240V AC; 49 to 60 Hz |
- Powering options
- 802.3af/at Ethernet switch
- Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
- Optional Cisco local power supply (AIR-PWR-C= or AIR-PWR-D=)
| Power |
draw |
| Maximum values |
12.95W (15.4W with 100m of cable) with no PoE out, 20.7W (22W with 100m of cable) with 6.49W PoE out and 27.65W with 12.95W PoE out (when powered using AIR-PWR-C or AIR-PWR-D) |
| Note |
When deployed using PoE, the power draw numbers listed above include the power loss in 100m of cabling on the uplink port and 100m of cabling on the PoE out port. |
