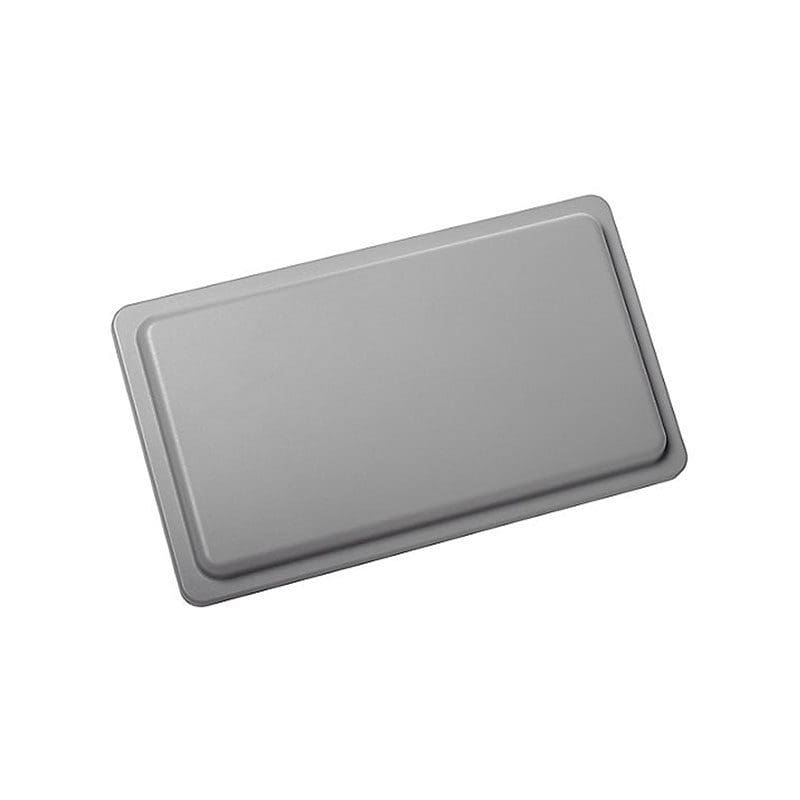

AIR-ANT2588P3M-N Cisco Aironet Directional Antenna
AIR-ANT2588P3M-N Overview
GHz/5-GHz 8-dBi Directional Antenna Antenna 8 dBi directional outdoor
$435.00
Shipping calculated at checkout.
AIR-ANT2588P3M-N Technical Specification
Cisco Aironet Directional Antenna
| Manufacturer | Cisco Systems |
|---|---|
| Brand | Cisco |
| Product Line | Cisco Aironet |
| Model | :2.4-GHz/5-GHz 8-dBi Directional Antenna |
| Packaged Quantity | :1 |
General
| Product Type | Antenna |
|---|---|
| Category of Accessory | Antennas |
Antenna
| Antenna Placing / Mounting | Outdoor |
|---|---|
| Directivity | Directional |
| Frequency Range | :2.4 – 2.5 GHz, 5.15 – 5.9 GHz |
Impedance :50 ohm
| Voltage | Standing Wave Ratio (VSWR) :2.0:1 |
|---|
Interface Provided
| Connector Provided | :1 x N connector |
|---|
Dimensions & Weight
| Width | :7 inch |
|---|---|
| Depth | :1.1 inch |
| Height | :12 inch |
| Weight | :15.87 ounce |
Environmental Parameters
| Min Operating Temperature | -40 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :131 degree Fahrenheit |
