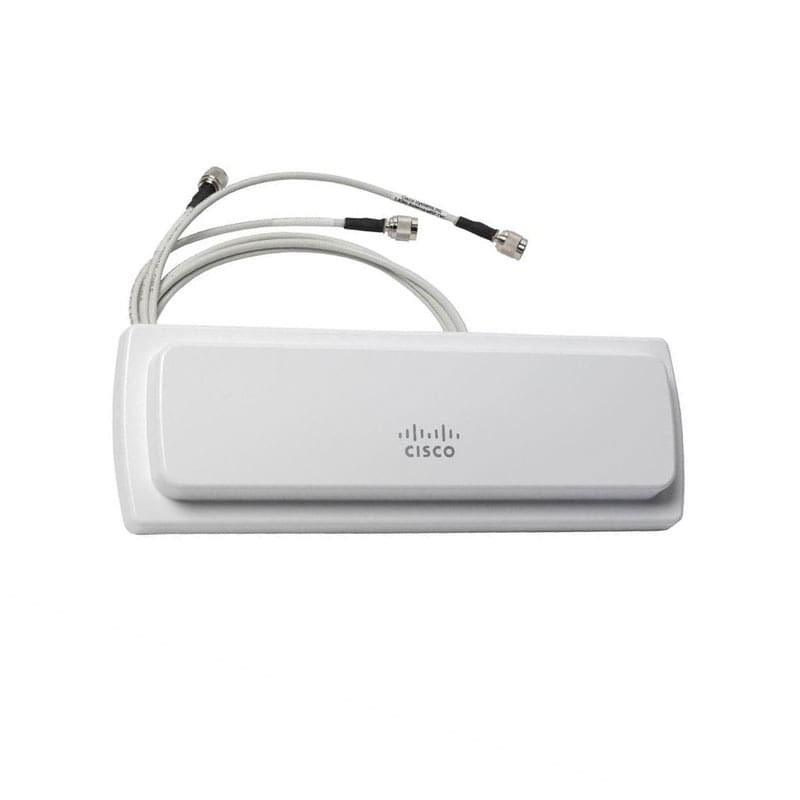

AIR-ANT2566P4W-R= CISCO Aironet MIMO Element Patch Antenna
AIR-ANT2566P4W-R= Overview
Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch Antenna. The Cisco Aironet AIR-ANT2566P4W-R= is a dual-band MIMO patch antenna designed to operate at both 2.4 GHz and 5 GHz frequencies. Featuring a 4-element design, this antenna enhances wireless signal coverage and performance, making it ideal for both indoor and outdoor applications. It is particularly suitable for environments requiring robust and reliable Wi-Fi connections, such as enterprise campuses, warehouses, and public venues.
$599.00
Shipping calculated at checkout.
AIR-ANT2566P4W-R= Technical Specifications
CISCO Aironet MIMO 4 Element Patch Antenna
| Brand | Cisco |
|---|---|
| Compatibility | PC |
| Manufacturer | Telstrat |
| Model | 2.4-GHz/5-GHz MIMO 4-Element Patch Antenna |
| Packaged Quantity | 1 |
| Product Line | Cisco Aironet |
General
| Category of Accessory | Antennas |
|---|
Antenna
| Antenna Placing Mounting | Indoor, Outdoor |
|---|---|
| Cable Length | 91.4 cm |
| Directivity | Directional |
| Frequency Range | 2.4 GHz, 5 GHz |
| Gain | 6 dBi |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
Interface Provided
| Connector Qty | 4 |
|---|---|
| Connector Type | RP-TNC |
Miscellaneous
| Product Type | Antenna |
|---|
Environmental Parameters
| Max Operating Temperature | 70 °C |
|---|---|
| Min Operating Temperature | -30 °C |
Dimensions & Weight
| Depth | 3.05 cm |
|---|---|
| Height | 16 cm |
| Weight | 0.64 kg |
| Width | 27.9 cm |
