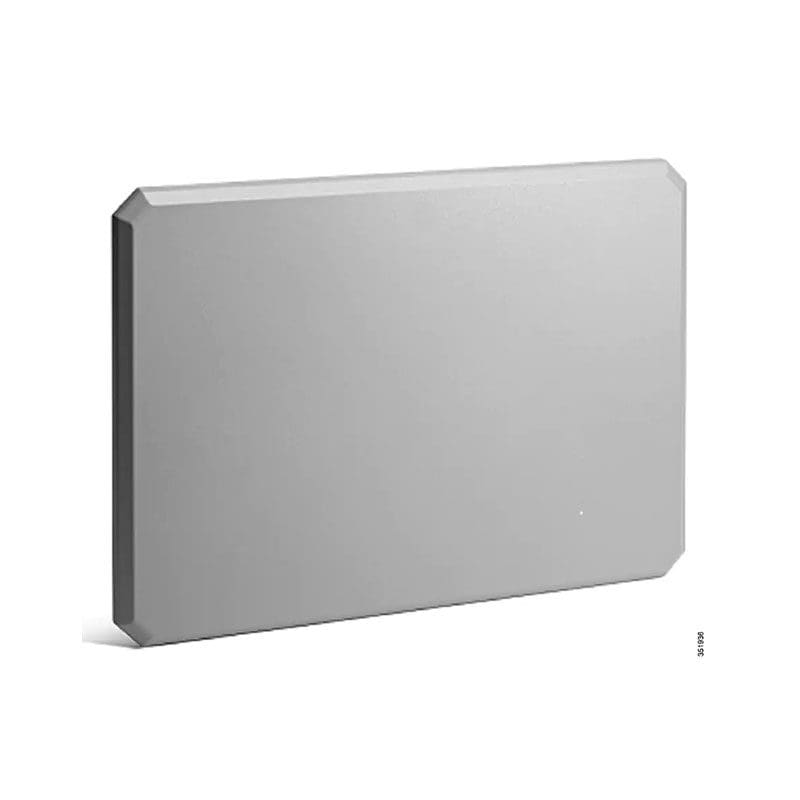

AIR-ANT2513P4M-N= Cisco Aironet Four-Port Dual-Band Antenna
AIR-ANT2513P4M-N= Overview
The antenna is a four-port polarization-diverse patch array that operates over the 2.4-GHz and 5-GHz Wi-Fi bands. It ships with an articulating mount for use on flat surfaces and masts and is adjustable in both the horizontal and vertical planes. The antenna is designed for use in indoor and outdoor environments.
$1,139.00
Shipping calculated at checkout.
AIR-ANT2513P4M-N= Technical Specificatons
Cisco Aironet Four-Port Dual-Band Polarization Diverse Antenna
General
| Category of Accessory | Antenna |
|---|
Antenna
| Antenna Placing Mounting | Ceiling mountable, Indoor, Outdoor, Pole mount, Wall-mountable |
|---|---|
| Compatibility | :802.11n |
| Compatibility | :802.11n |
| Directivity | Directional |
| Frequency Range | :2.4 – 2.5 GHz, 5.15 – 5.925 GHz |
| Gain | :13 dBi |
Impedance :50 ohm
| Intended For | Wi-Fi |
|---|---|
| Voltage | Standing Wave Ratio (VSWR) :1.6:1 (for 2400-2500 MHz), 2.0:1 (for 5150-5700 MHz), 1.5:1 (for 5700-5900 MHz) |
Environmental Parameters
| Max Operating Temperature | :158 °F |
|---|---|
| Min Operating Temperature | -22 °F |
| Brand | Cisco |
|---|---|
| Compatibility | PC |
| Manufacturer | Cisco Systems |
| Model | Four-Port Dual-Band Polarization-Diverse Antenna |
| Packaged Quantity | :1 |
| Product Line | Cisco Aironet |
Interface Provided
| Connector Qty | :4 |
|---|---|
| Connector Type | N-Series connector |
Miscellaneous
| Compliant Standards | IP67 |
|---|---|
| Mounting Kit | Included |
| Product Type | Antenna |
