AF-MPX4 Ubiquiti Networks Scalable airFiber MIMO Multiplexer
AF-MPX4 Overview

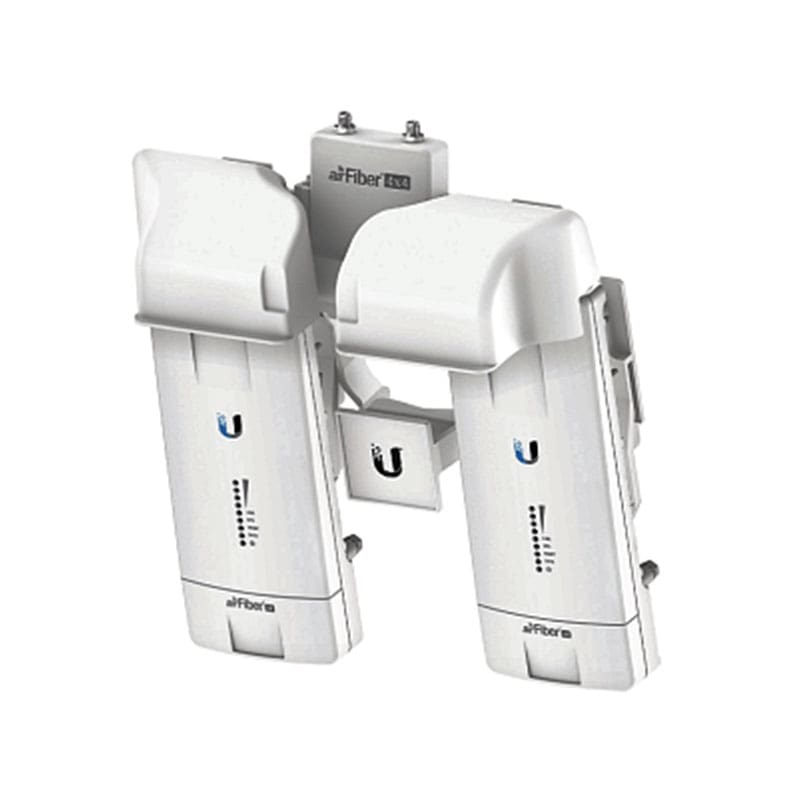

Ubiquiti Networks Scalable airFiber MIMO Multiplexer. Upgrade your wireless network to multi-Gigabit throughput with the AF-MPX4 Scalable airFiber MIMO Multiplexer from Ubiquiti Networks. Mount two airFiber 5X radios to a single dish antenna using this multiplexer and enhance data throughput by up to 400% resulting in enhanced data speeds along with improved network redundancy. The dual radio configuration supports 4×4 MIMO coverage offering data transfer rates of up to 1 Gbps, which is perfect for large data transfers, multimedia streaming and much more.
$111.00
Shipping calculated at checkout.
AF-MPX4 Technical Specifications
Ubiquiti airFiber MPX4 multiplexor
| Manufacturer | Ubiquiti Networks |
|---|---|
| Brand | Ubiquiti Networks |
RF Connectors
- 2 x RP-SMA Weatherproof (CH0, CH1)
- 4 x RP-SMA Weatherproof (A0, A1, B0, B1)
| Cable Loss | 4.1 dB |
|---|---|
| Supported Radio Technologies | Supported airFiber X Radio: AF-5X |
Multiplexer
| Multiplex MIMO | 2 x (2×2) |
|---|---|
| Mounting | airFiber X / Rocket Mount compatible |
| Dimensions | 7.78 x 9.48 x 4.06″ / 197.5 x 240.9 x 103.2 mm |
| Weight | 0.8 lb / 0.4 kg |
