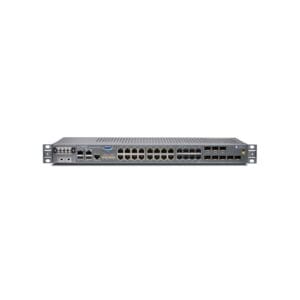

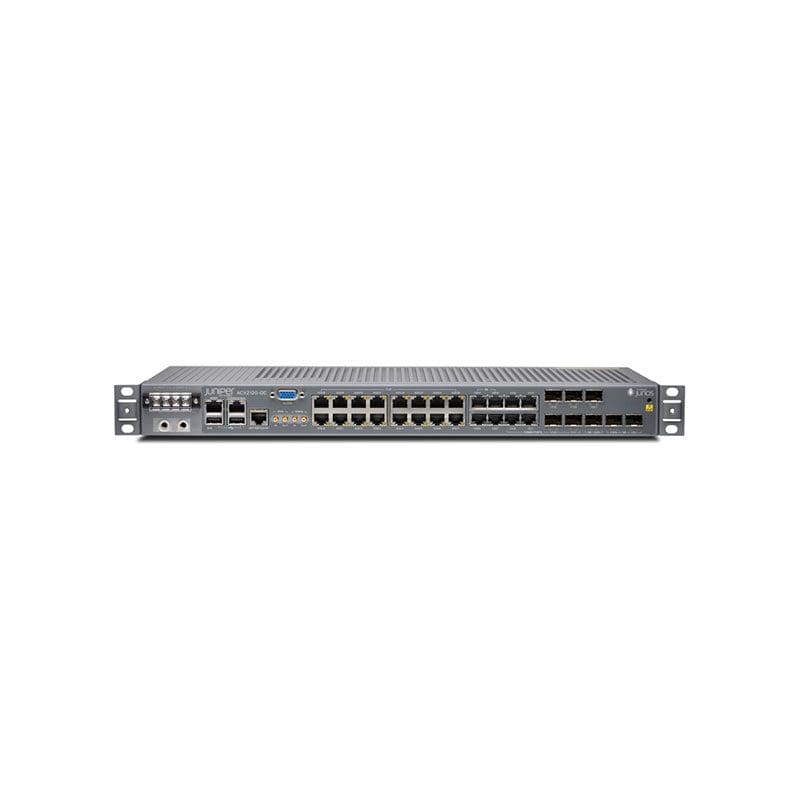

Refurbished ACX2200-AC Juniper Networks ACX Series 2200 router
Refurbished ACX2200-AC Overview
The compact 1 U ACX2000 is environmentally hardened with fanless passive cooling and provides a versatile access platform that includes TDM, GbE, and 10GbE interfaces.
$4,000.00
Shipping calculated at checkout.
Refurbished ACX2200-AC Technical Specifications
Juniper Networks ACX Series 2200 router
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks ACX Series |
| Model | :2200 |
| Packaged Quantity | :1 |
Modem
| Type | None |
|---|
Networking
| Type | Router |
|---|---|
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet |
| Routing Protocol | MPLS |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2, CLI |
| Key Features | VPN support |
| Features | Timing support, Call Admission Control (CAC), VPN support, High Availability, Class of Service (CoS) |
| Compliant Standards | G.703 |
Interface Provided
| Interfaces | :8 x 10Base-T/100Base-TX/1000Base-T – RJ-45, 6 x 1000Base-X – SFP (mini-GBIC), 2 x 10Gb Ethernet / 1Gb Ethernet – SFP+ |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Installed Qty | :2 |
| Max Supported Qty | :2 |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | :50/60 hertz |
| Power Consumption Operational | :60 watt |
System Requirements
| OS Required | JUNOS |
|---|
Miscellaneous
| Color Category | Gray |
|---|---|
| Height (Rack Units) | :1 |
| Compliant Standards | FCC Part 15 A, CISPR 22 Class A, EN 60825-1, VCCI Class B, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 61000-4-2, ETSI, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, R&TTE, GR-1089-CORE, EN55022 Class A, EN 61000-4-6, IEC 60950-1, JATE, EN 61000-4-5, CS-03, GR-63-CORE, NEBS level 3, EN 60950-1, TBR13, TBR21, FCC Part 68, TBR12, EN 61000-4-4, ETS 300 753, CB, EN 61000-3-2, CAN/CSA-C22.2 No. 60950-1 |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :9.4 inch |
| Height | :1.7 inch |
| Weight | :8.31 lbs |
Environmental Parameters
| Min Operating Temperature | -40 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :149 degree Fahrenheit |
| Humidity Range Operating | :0 – 95% (non-condensing) |
