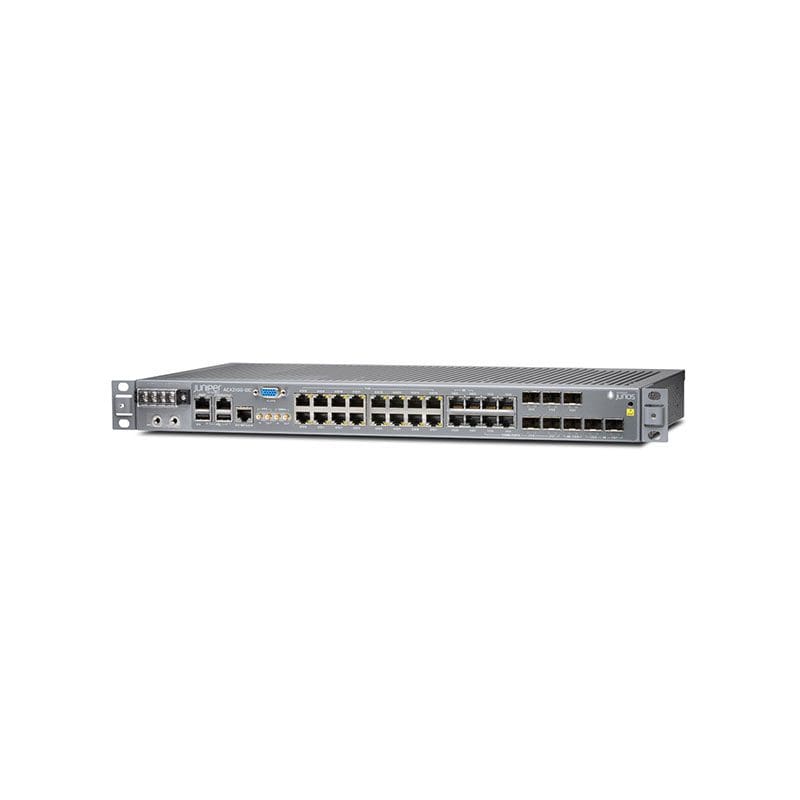

ACX2100-DC Juniper Networks ACX Series 2100 Router Rack Mountable
ACX2100-DC Overview
The compact, environmentally-hardened ACX2100 router with fan-less passive cooling has a fixed port configuration that includes sixteen T1/E1 interfaces, four copper 10/100/1000 Mbps interfaces, four combination copper/fiber GbE ports, two GbE SFP ports, and two 10 GbE SFP+ ports.
$13,299.00
Shipping calculated at checkout.
ACX2100-DC Technical Specifications
Juniper Networks ACX Series 2100 Router Rack Mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks ACX Series |
| Model | :2100 |
| Packaged Quantity | :1 |
Modem
| Type | None |
|---|
Line Properties
| Line Rate | T-1/E-1 |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | TDM, Fast Ethernet, Gigabit Ethernet, Ethernet |
| Routing Protocol | MPLS |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, CLI |
| Data Transfer Rate | :60 GBps |
| Features | Call Admission Control (CAC), Class of Service (CoS), Fanless, Precision Time Protocol (PTP) |
| Compliant Standards | MEF 14, IEEE 1588-2008, G.703, MEF 21, MEF 9 |
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Yes |
| Installed Qty | :2 |
| Max Supported Qty | :2 |
| Nominal Voltage | DC 24/-48/-60 V |
| Power Consumption Operational | :80 watt |
System Requirements
| OS Required | JUNOS |
|---|
