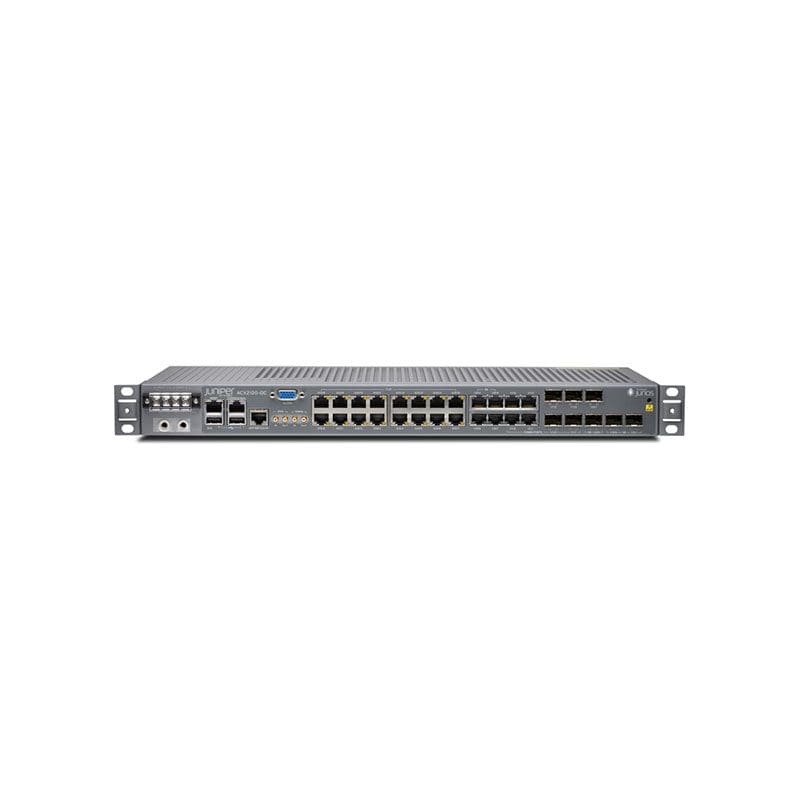

Refurbished ACX2100-AC Juniper Networks ACX Series 2100 router
Refurbished ACX2100-AC Overview
The compact, environmentally-hardened ACX2100 router with fan-less passive cooling has a fixed port configuration that includes sixteen T1/E1 interfaces, four copper 10/100/1000 Mbps interfaces, four combination copper/fiber GbE ports, two GbE SFP ports, and two 10 GbE SFP+ ports.
$5,100.00
Shipping calculated at checkout.
Refurbished ACX2100-AC Technical Specifications
Juniper Networks ACX Series 2100 router rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks ACX Series |
| Model | :2100 |
| Packaged Quantity | :1 |
Modem
| Type | None |
|---|
Line Properties
| Line Rate | T-1/E-1 |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, TDM, Ethernet |
| Routing Protocol | MPLS |
| Remote Management Protocol | CLI, SNMP 2, SNMP 1, SNMP 3 |
| Data Transfer Rate | :60 GBps |
| Features | Call Admission Control (CAC), Class of Service (CoS), Fanless, Precision Time Protocol (PTP) |
| Compliant Standards | IEEE 1588-2008, MEF 14, MEF 21, G.703, MEF 9 |
Interface Provided
| Interfaces :Alarm | 4 x input, 2 x 10Gb Ethernet – SFP+, 16 x T1/E1 – RJ-48, 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45, Management: 1 x console, 6 x SFP (mini-GBIC), Alarm: 4 x output, Serial: 1 x RS-232 |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Yes |
| Installed Qty | :2 |
| Max Supported Qty | :2 |
| Nominal Voltage | AC 120/230 V |
| Power Consumption Operational | :60 watt |
System Requirements
| OS Required | JUNOS |
|---|
Miscellaneous
| Color Category | Gray |
|---|---|
| Height (Rack Units) | :1 |
| Compliant Standards | FCC Part 15 A, EN 61000-4-3, EN 61000-4-4, EN55022 Class A, EN 61000-4-2, EN 61000-3-3, ETS 300 753, EN 60950-1, TBR12, TBR13, R&TTE, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60825-1, JATE, FCC Part 68, EN 61000-3-2, EN 61000-4-6, TBR21, ETSI, IEC 60950-1, NEBS, CISPR 22 Class A, CS-03, VCCI Class B ITE, EN 61000-4-11, CAN/CSA-C22.2 No. 60950-1 |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :9.4 inch |
| Height | :1.7 inch |
| Weight | :8.31 lbs |
Environmental Parameters
| Min Operating Temperature | -40 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :149 degree Fahrenheit |
| Humidity Range Operating | :0 – 95% (non-condensing) |
