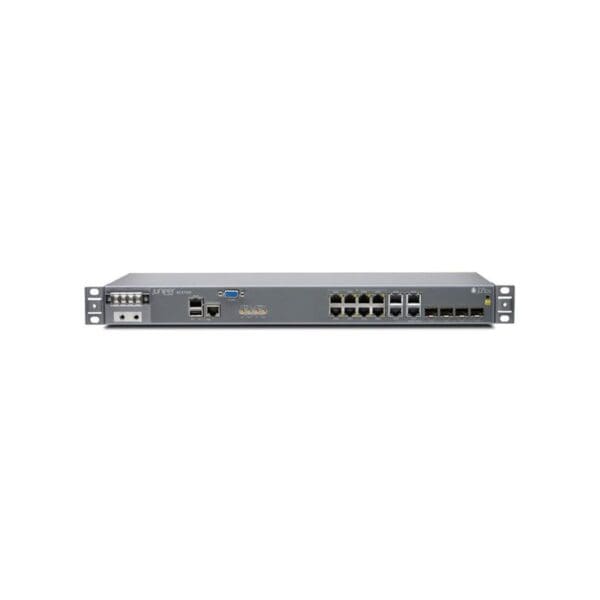

Refurbished ACX1100-AC Juniper Networks ACX Series 1100 router
Refurbished ACX1100-AC Overview
The compact, 1RU, environmentally hardened ACX1100 is an Ethernet-only access router with a fixed configuration of eight copper GbE 10/100/1000 Mbps interfaces, and four GbE copper/fiber combination ports. Its 60 Gbps performance, programmability, and fan-less passive cooling system makes it ideal for external cabinet or tower installation.
$2,180.00
Shipping calculated at checkout.
Refurbished ACX1100-AC Technical Specifications
Juniper Networks ACX Series 1100 router rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks ACX Series |
| Model | :1100 |
| Packaged Quantity | :1 |
Modem
| Type | None |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, Ethernet, Fast Ethernet |
| Routing Protocol | MPLS |
| Remote Management Protocol | SNMP 1, CLI, SNMP 2, SNMP 3 |
| Data Transfer Rate | :60 GBps |
| Features | Fanless, Call Admission Control (CAC), Class of Service (CoS), Precision Time Protocol (PTP) |
| Compliant Standards | MEF 9, IEEE 1588-2008, MEF 14, MEF 21, G.703 |
Interface Provided
| Interfaces :Management | 1 x, 4 x SFP (mini-GBIC), Serial: 1 x RS-232, Alarm: 4 x input, Alarm: 4 x output, 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45 |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Yes |
| Installed Qty | :2 |
| Max Supported Qty | :2 |
| Nominal Voltage | AC 120/230 V |
System Requirements
| OS Required | JUNOS |
|---|
Miscellaneous
| Color Category | Gray |
|---|---|
| Height (Rack Units) | :1 |
| Compliant Standards | EN 61000-3-2, ETSI, CISPR 22 Class A, CS-03, TBR12, VCCI Class B ITE, EN 61000-4-6, UL 60950-1, EN 61000-4-4, FCC Part 15 A, EN 61000-3-3, NEBS, EN 61000-4-3, EN55022 Class A, R&TTE, TBR13, EN 60950-1, FCC Part 68, JATE, CAN/CSA C22.2 No. 60950-1, EN 61000-4-2, IEC 60950-1, EN 60825-1, ETS 300 753, TBR21, EN 61000-4-11, CAN/CSA-C22.2 No. 60950-1 |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :9.4 inch |
| Height | :1.7 inch |
| Weight | :7.8 lbs |
Environmental Parameters
| Min Operating Temperature | -40 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :158 degree Fahrenheit |
| Humidity Range Operating | :0 – 95% (non-condensing) |
