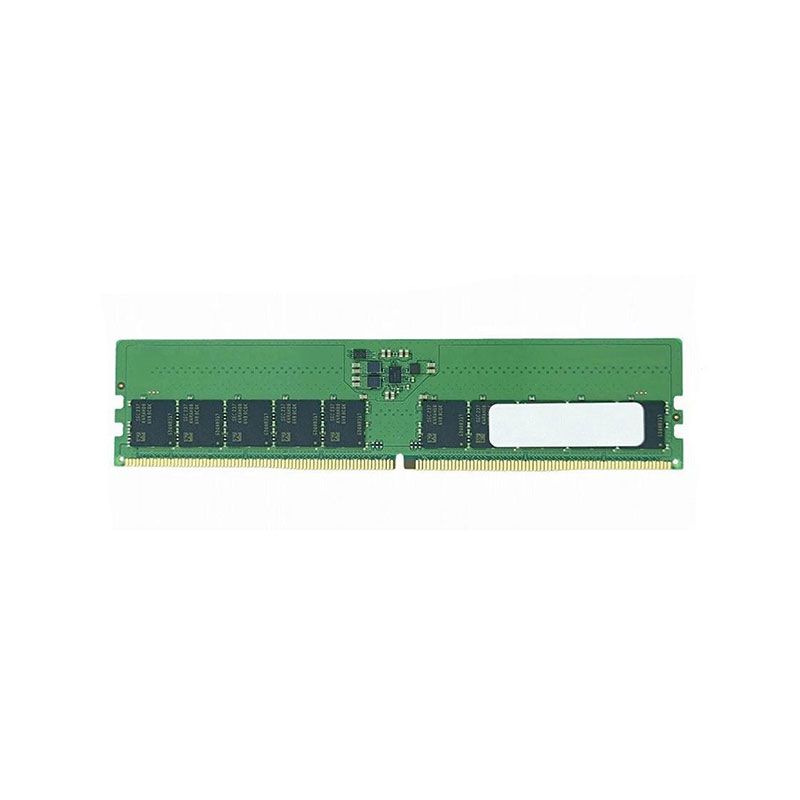

AC239377-AM AddOn 16GB PC5-38400 DDR5-4800MHz ECC Registered CL40 288-Pin Memory Module
AC239377-AM Overview
The AddOn AC239377-AM is a 16GB DDR5 Registered DIMM (RDIMM) designed for servers and workstations that require reliable, high-performance memory. Operating at 4800MT/s with CL40 latency, it delivers stable, low-latency performance suitable for virtualization, database management, and other enterprise workloads.Equipped with ECC (Error-Correcting Code) technology, this module ensures data integrity by detecting and correcting memory errors, providing stability and reliability for mission-critical applications. Its single-rank architecture and 288-pin DDR5 form factor ensure compatibility with server and workstation platforms, while the 1.1V operating voltage supports efficient power usage. The AC239377-AM combines reliability, speed, and data protection, making it an ideal choice for enterprise-grade deployments and modern data center environments.
$2,560.00
AC239377-AM Technical Specifications
AddOn 16GB PC5-38400 DDR5-4800MHz ECC Registered CL40 288-Pin DIMM 1.1V Single Rank Memory Module
| Manufacturer Part Number | AC239377-AM |
|---|---|
| Brand Name | AddOn |
| Product Type | DDR5 Registered DIMM (RDIMM) |
| Capacity | 16GB |
| Memory Technology | DDR5 SDRAM |
| Form Factor | 288-Pin RDIMM |
| Module Type | Registered (Buffered) |
| Error Correction | ECC (Error-Correcting Code) |
| Memory Speed | 4800 MT/s (PC5-38400) |
| CAS Latency | CL40 |
| Rank | Single Rank (1Rx8) |
| Bus Width | 64-Bit |
| Voltage | 1.1 V |
| Chip Organization | x8 |
| Data Integrity | ECC Error Detection & Correction |
| Compatibility | Servers supporting DDR5-4800 RDIMM |
| Performance | Reliable enterprise and workstation memory |
| Thermal Sensor | Not specified |
| Operating Temperature | 0 °C to 85 °C |
| JEDEC Standard | DDR5-4800 |
| Refresh Rate | Auto refresh support |
| Density per Chip | 2GB per x8 chip |
| PCB Layers | 8-layer PCB (typical) |
| Pin Count | 288 |
