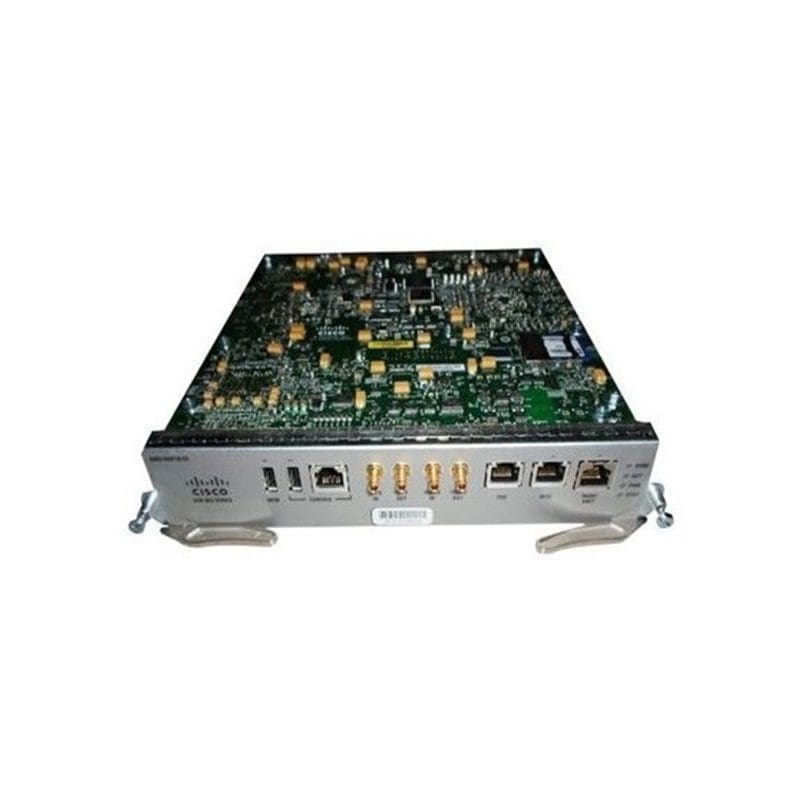

A900-RSP3C-400-W Cisco Route Switch Processor 3

Brand:

A900-RSP3C-400-W Overview

he Cisco ASR 900 Series RSP modules contain separate control plane and data plane components. These include the main control plane CPU for the Cisco IOS® Software operating system and platform control software. The data-plane packet processing and traffic management is performed by the Carrier Ethernet Application-Specific Integrated Circuit

$29,899.00

Shipping calculated at checkout.
or
SKU: A900-RSP3C-400-W Categories: Brand:

A900-RSP3C-400-W Technical Specification

Cisco Route Switch Processor 3

Device Type Control processor

Processor / Memory / Storage

RAM 8 GB
Flash Memory 8 GB

Networking

Form Factor Plug-in module
Connectivity Technology Wired
Performance Aggregate throughput 400 Gbps ¦ IPv4 routing: 600 Mbps ¦ IPv6 routing: 600 Mbps
Features Manageable, MPLS VPN

Expansion / Connectivity

Interfaces 1 x management – RJ-45 ¦ 1 x RS-232 – RJ-45 ¦ 1 x USB 2.0 – Type A ¦ 1 x – RJ-45 ¦ 1 x USB 2.0 – Type A

Miscellaneous

Mtbf 230,000 hours

Software / System Requirements

OS Provided Cisco IOS XE Universal – No Payload Encryption
Compatibility Information
Designed For Cisco ASR 901, 901 10G, 901S, 902, 903, 907, 920
